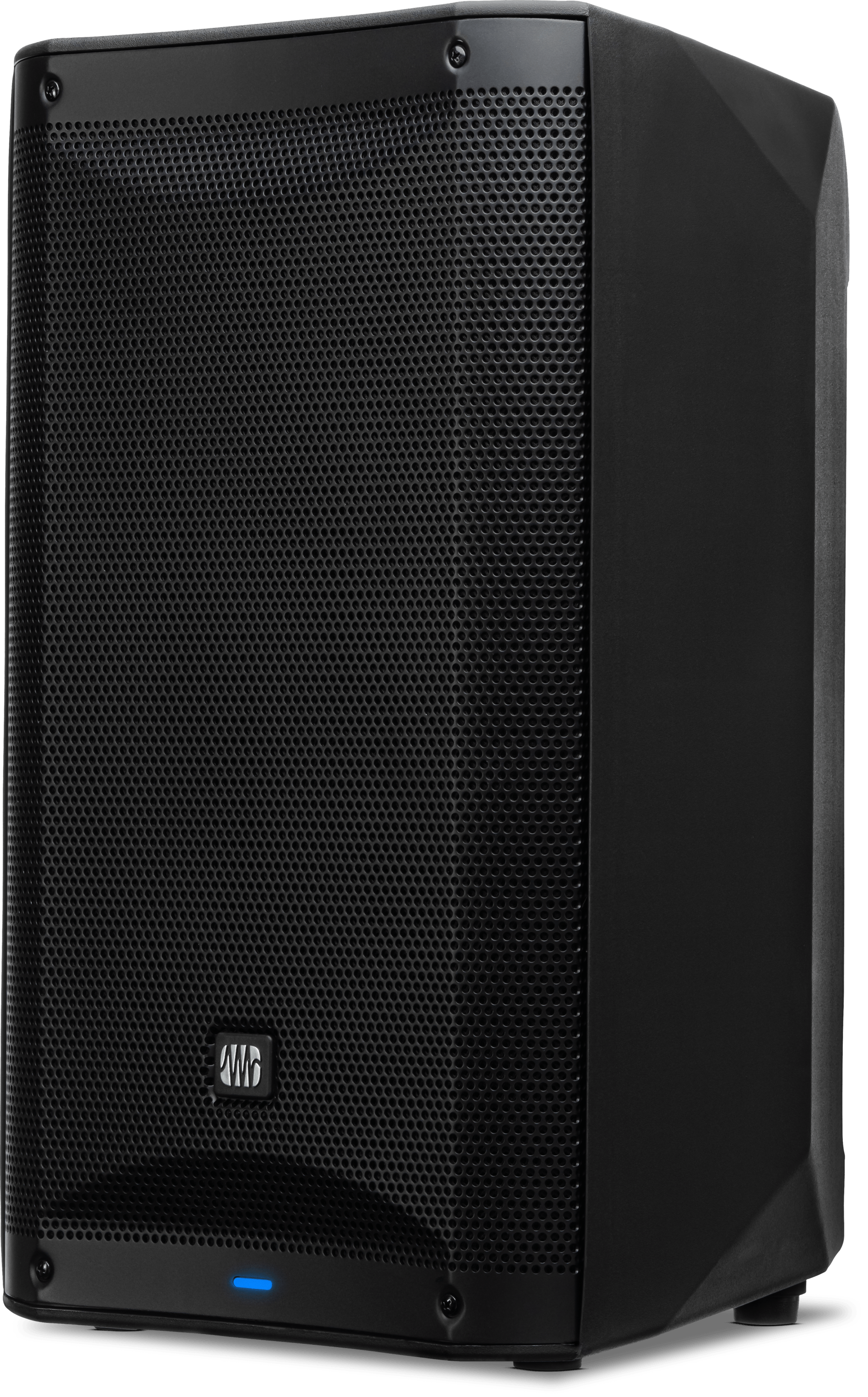

AIR XD 10 1x10 2-Way Active Extended Definition Loudspeaker

New

Compact yet powerful, the PreSonus AIR XD 10 active loudspeaker delivers extended-definition sound with 1,500W of Class D power, TWS Bluetooth stereo capability, and flexible connectivity—perfect for mobile gigs or permanent installs.

Overview

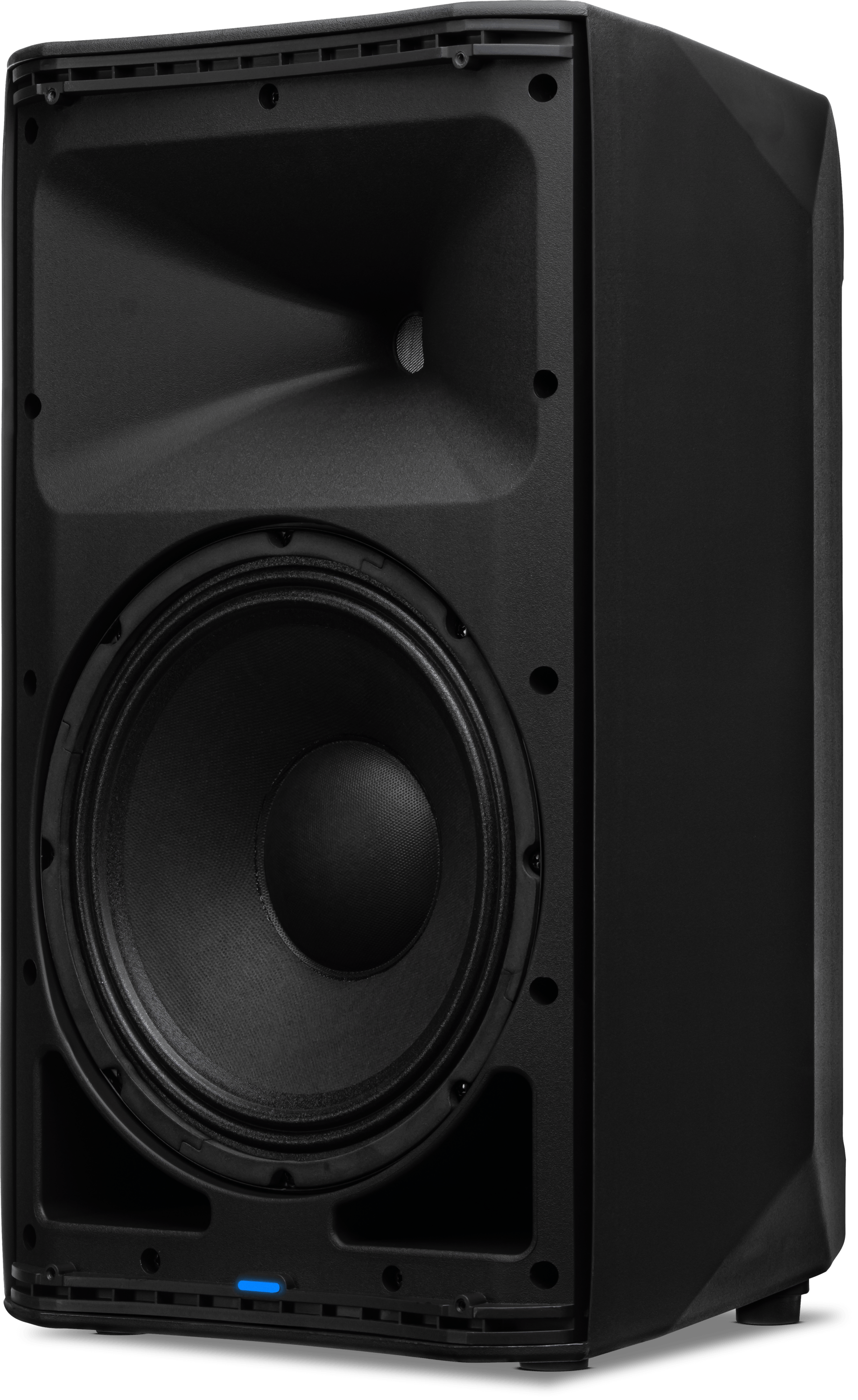

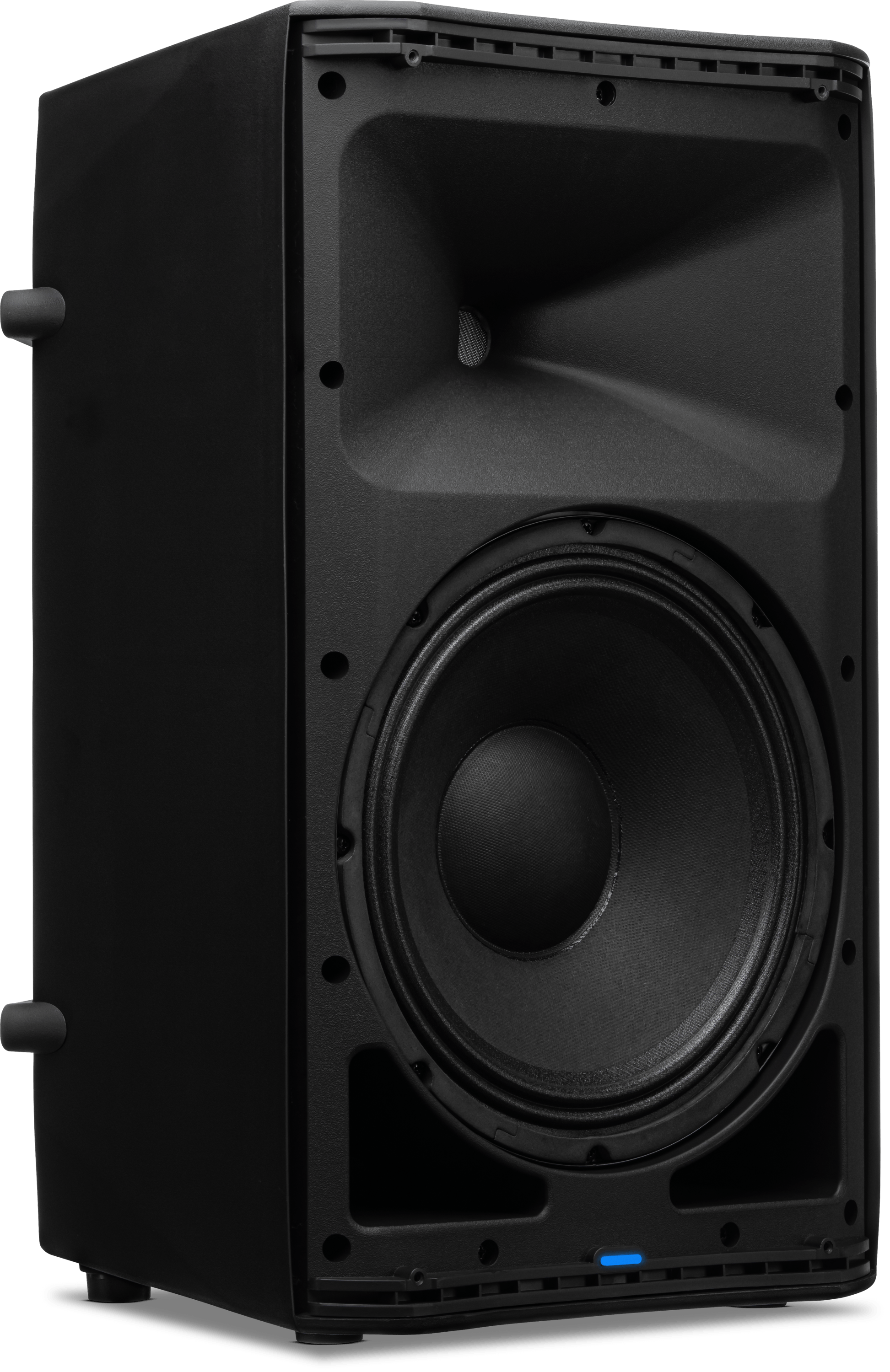

The PreSonus AIR XD 10 is a full-range active loudspeaker designed for professional use, delivering extended-definition sound, high SPL, and precise tonal balance for any application. Its custom 10-inch low-frequency driver features an enlarged 2.36” voice coil for efficient power handling and extended low-end response down to 55 Hz, producing tight, dynamic bass with minimal distortion. The 1-inch high-frequency driver uses a PEEK diaphragm, offering exceptional stiffness, wear resistance, and high-temperature tolerance, resulting in clear, detailed, and ultra-responsive highs even under prolonged, high-output operation.

Powered by 1,500W of efficient Class D amplification, the AIR XD 10 can reach up to 130 dB SPL while maintaining clarity and headroom. Onboard DSP presets, ±10 dB EQ, and performance tuning modes allow quick adjustment for speech, music playback, FOH, or monitor use. A full-color 2.6” LCD provides intuitive metering, system control, and rapid access to all settings.

Built-in Bluetooth with TWS Bridge Mode enables effortless wireless stereo pairing, making it ideal for mobile DJs, corporate events, and fast setups. The integrated mixer includes combo mic/line and aux inputs, allowing seamless connectivity and versatile signal routing. Rugged enclosures with ergonomic handles and multiple mounting options make the AIR XD 10 as portable as it is powerful, whether flown, pole-mounted, ground-stacked, or used as a floor

Features

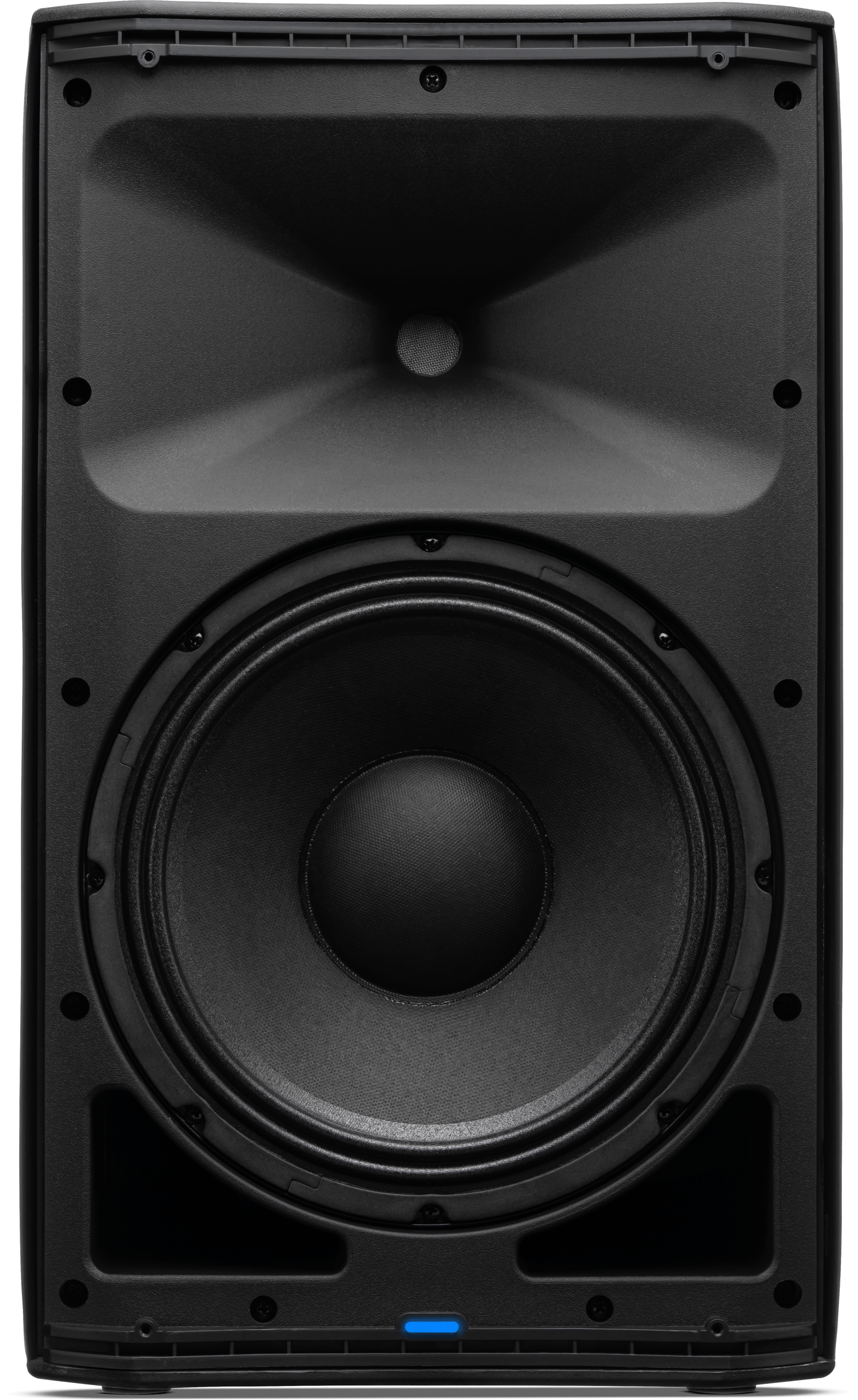

  • Custom 10-inch low-frequency driver with enlarged 2.36” voice coil for extended low-end response down to 55 Hz

  • 1-inch High-frequency compression driver with PEEK diaphragm for clear, detailed, and durable highs

  • 1,500W Class D bi-amplification for clean, efficient power and up to 130 dB SPL

  • Onboard DSP with performance presets, ±10 dB EQ, and tuning modes for speech, music, FOH, or monitor use

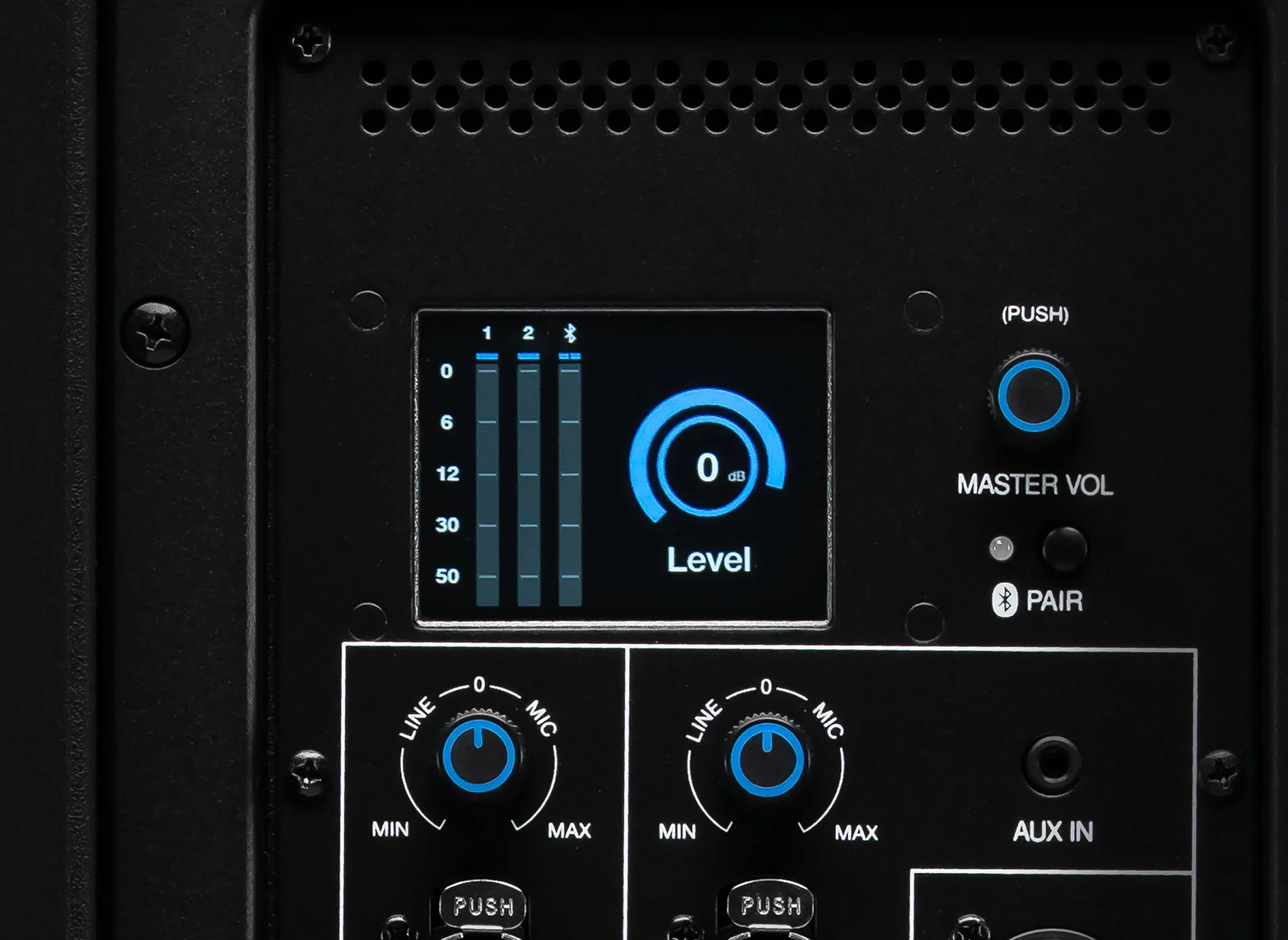

  • Full-color 2.6" LCD for fast, intuitive metering and system control

  • Built-in Bluetooth with TWS Bridge Mode for true wireless stereo pairing

  • 90˚ horizontal dispersion and 60˚ vertical dispersion

  • Frequency Response: 66 Hz to 20 kHz (-3 dB), 55 Hz to 20 kHz (-10 dB)

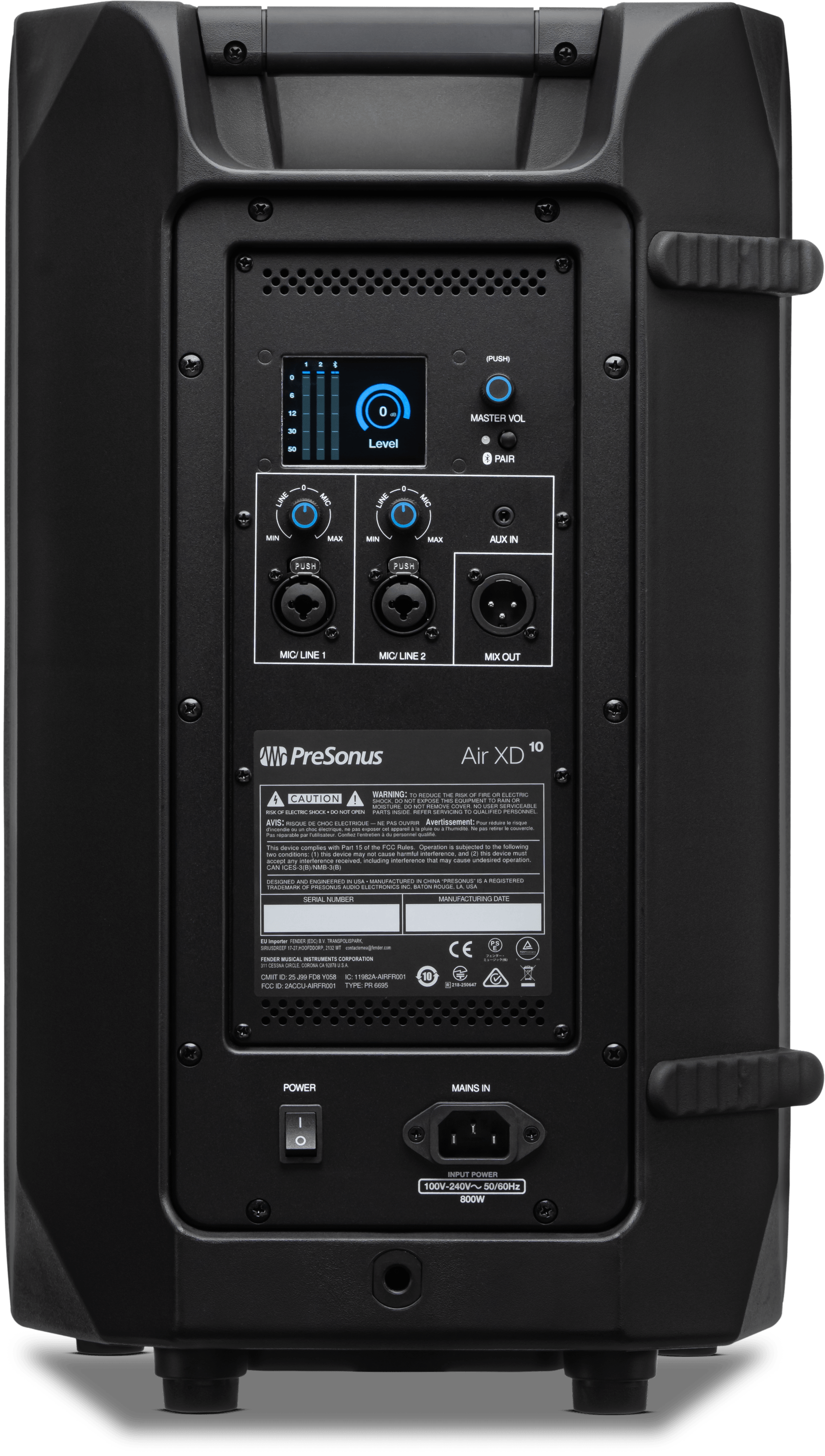

  • Integrated 3-channel mixer with combo mic/line and aux inputs for flexible connectivity

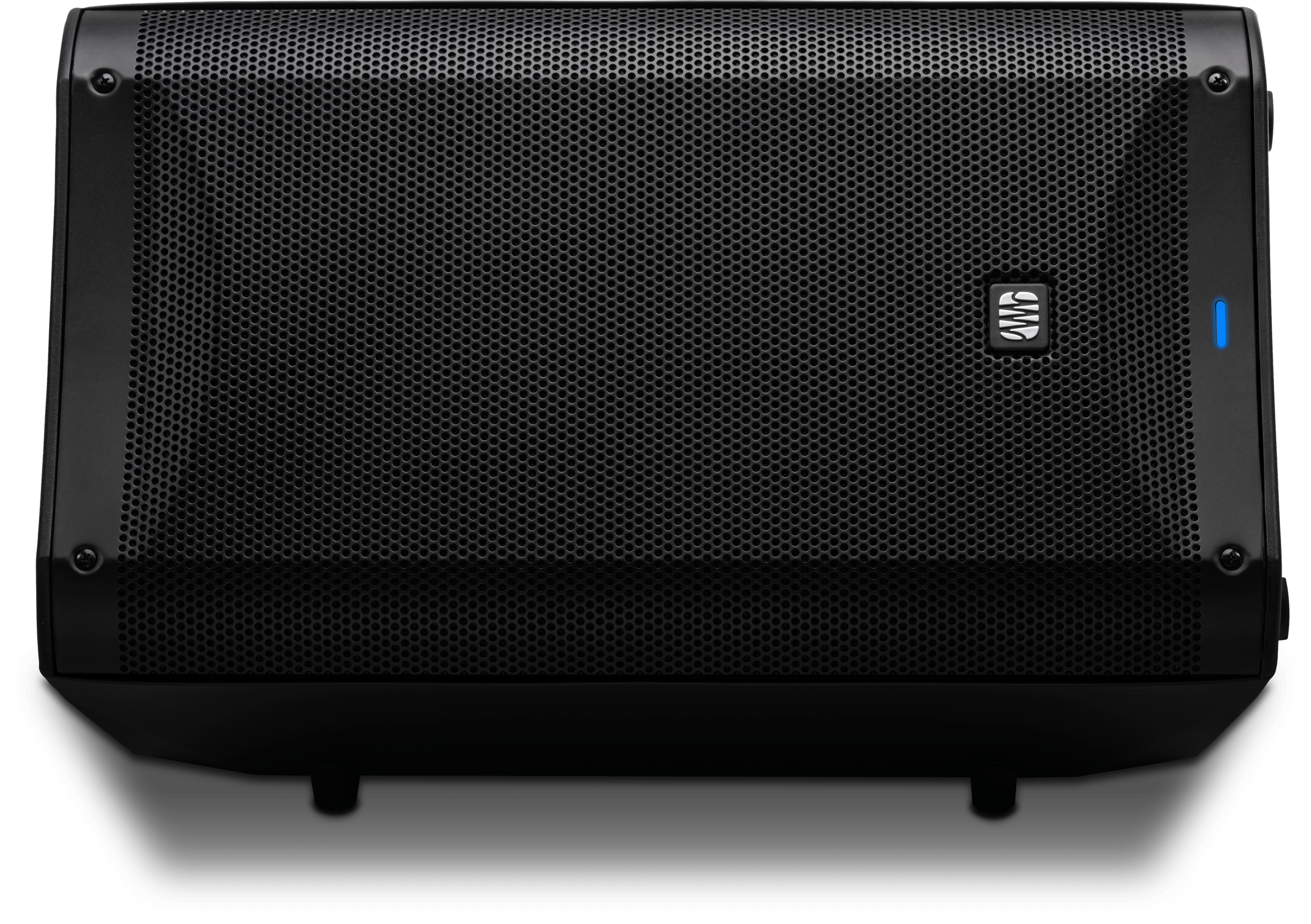

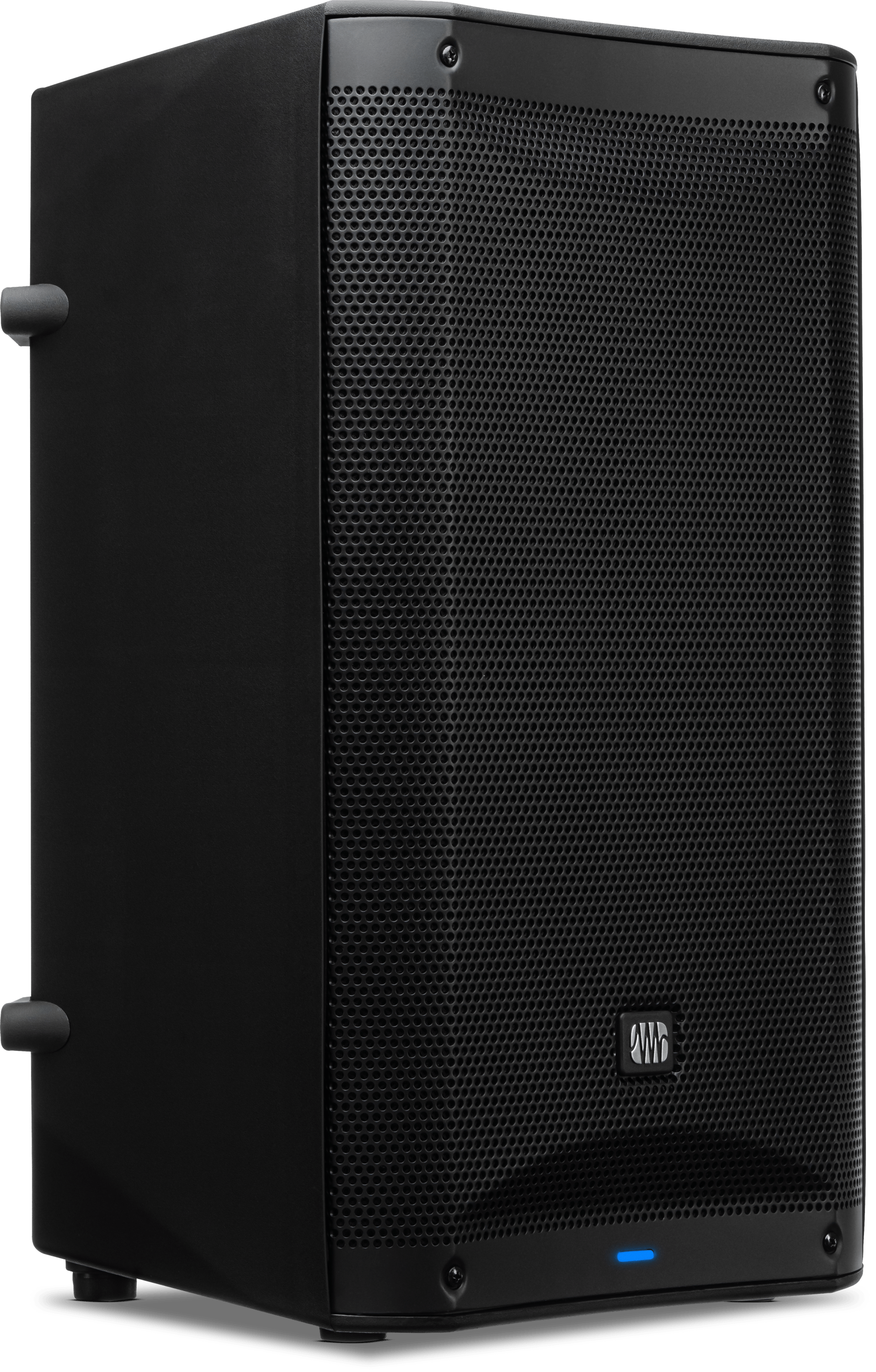

  • Rugged, portable enclosure with ergonomic handles and multiple mounting options: flown, pole-mounted, ground-stacked, or floor wedge

Highlights

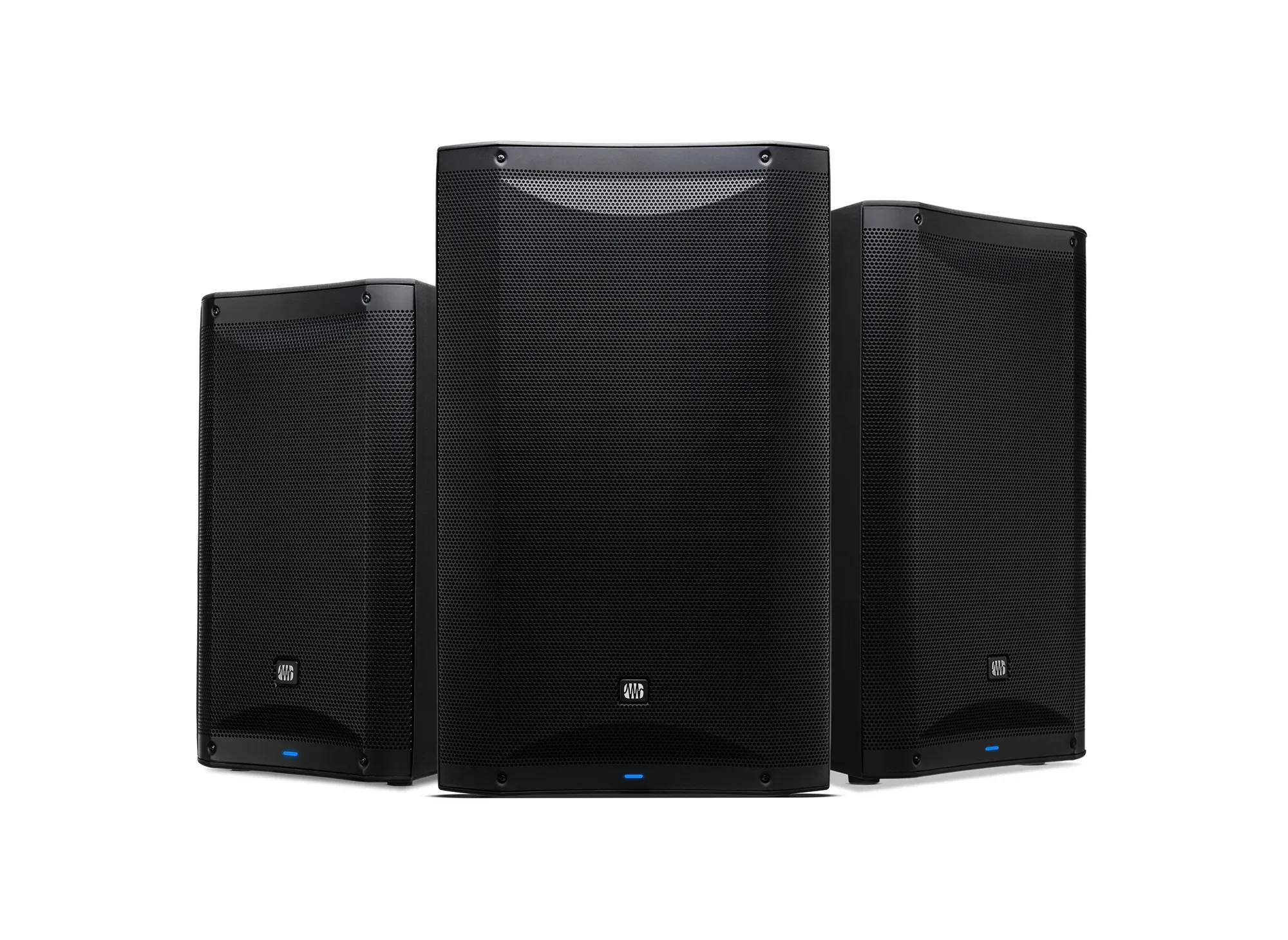

Scalable Performance for Any Setup

With 10-, 12-, and 15-inch full-range models and 15- or 18-inch subs, AIR XD speakers deliver massive output and precise, detailed sound across the full frequency spectrum. Class D amplification provides high efficiency, maximum headroom, and clean power handling, making them perfect for everything from intimate gigs to large-scale events.

Precision DSP for Perfect Sound

Shape your system with intuitive DSP presets for FOH, monitoring, speech, music, or enhanced warmth. Subwoofer tuning includes crossover control, array presets, alignment delay, and more.

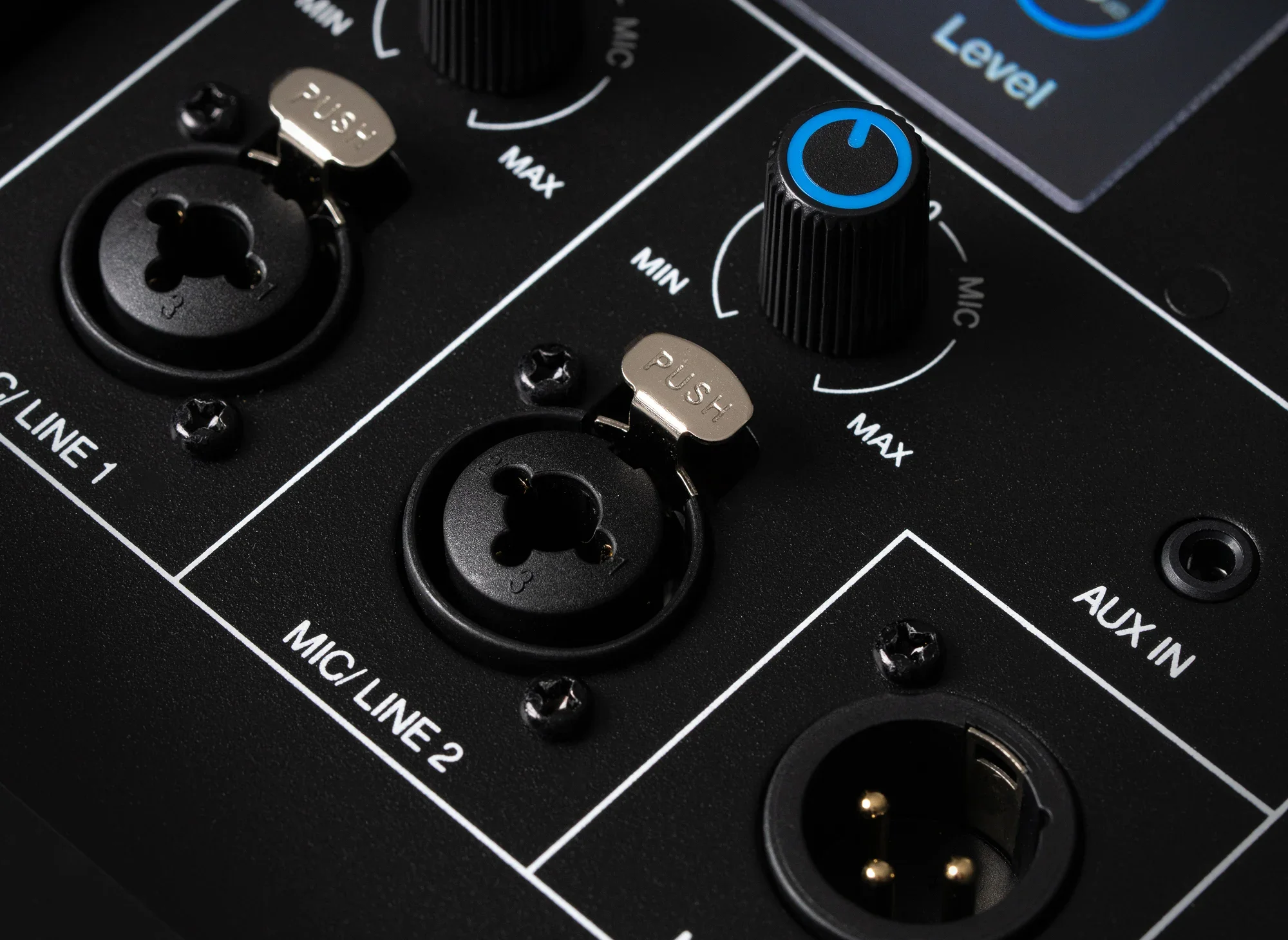

Flexible Connectivity Built In

Each speaker includes an onboard mixer with combo mic/line inputs, aux support, and built-in Bluetooth with TWS Bridge Mode for true wireless stereo pairing—no extra gear or cables required.

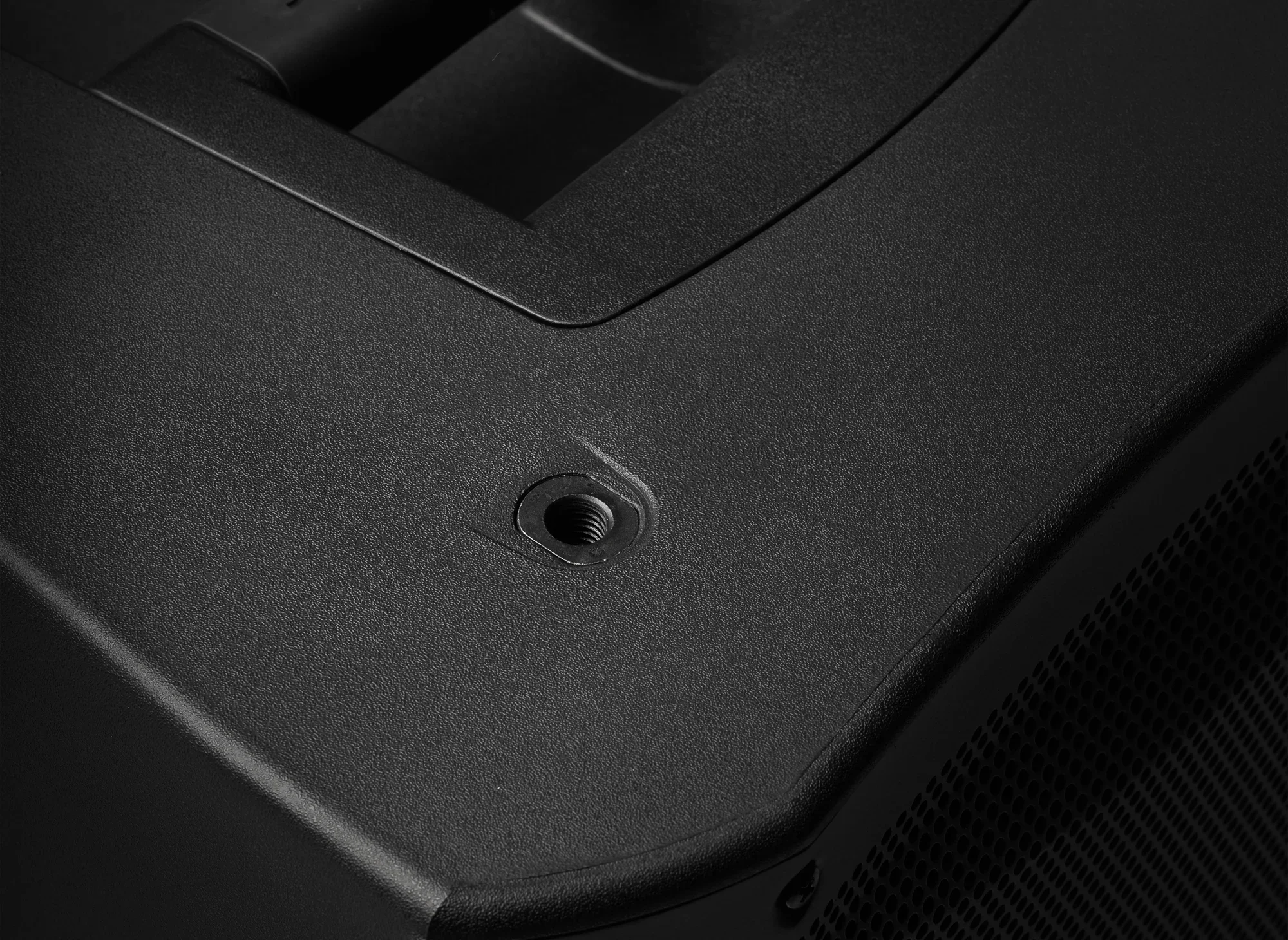

Built to Move. Ready to Install.

Rugged enclosures, full-color displays, versatile mounting options, and ergonomic hardware make AIR XD perfect for the stage, the road, or permanent installs.

PreSonus® Six-Year Warranty

When you choose AIR XD-series loudspeakers and subwoofers, you choose confidence. Rest assured that your PreSonus® speakers are in it for the long haul. We take our build quality seriously, and if anything goes wrong with them in your first six years of ownership (assuming you don’t abuse them), the repair or replacement is on us.

Specs

Electronics

  • Auxiliary Input
    1/8 in (3.5 mm) Stereo

  • Bluetooth
    Bluetooth® V5.0

  • Channels
    Three

  • Connectivity
    Bluetooth

  • Inputs
    Four - (2 x XLR/TRS Mic/Line Combo, 1 x 1/8” TRS Stereo, Bluetooth Stereo)

  • Line Out
    One - 1 x XLR Mix Out

  • Power Consumption
    3.3A (230V-50 Hz), 6.6A (120V)

  • VoltageRequirements
    100-240 VAC, 50-60 Hz

General

  • Amplifier Type
    Class-D

  • Color
    Black

  • Product Name
    AIR XD 10 2-Way Active Sound-Reinforcement Loudspeaker

  • Series
    AIR

Hardware

  • Audio Controls
    Gain, Volume, Hi/Lo EQ

  • Cabinet Material
    H-PP Molded

  • Cooling
    Passive radiator

  • Grille Material
    1.2 mm Steel

  • HF Powere
    468W

  • HF Transducers
    1” Compression

  • Handle
    1 Top

  • LF Power
    1060W

  • LF Transducers
    10” (2.36” Voice Coil)

  • Pole Socket
    Dual Position (0˚, 7.5˚)

Output

  • Line Outputs Connection Type

    XLR Male, Balanced

Inputs

  • Line Input Connection Type
    XLR/TRS Mic/Line Combo

  • Line Inputs Impedance

    30K ohm

  • Line Inputs Maximum Level

    +14dBu

  • Microphone Preamp Input Impedance

    30K ohm

Measurements

  • Product Depth

    11.5" (29.1 cm)

  • Product Height

    20.3" (51.6 cm)

  • Product Height/Length

    20.3" (51.6 cm)

  • Product Weight

    30.9 lbs (13.9 kg)

  • Product Width

    11.8" (30.0 cm)

Miscellaneous

  • DSP Features

    Speaker modes, Location, Bass, Treble

  • Power Cable

    IEC

  • Protections

    Output limiter

  • Suspension

    M10 Suspension Points, Flypoints: 2 Top, 1 Back

Performance

  • Peak SPL

    130 dB

  • Total Power Output

    1500 Watts

Speakers

  • PCoverage Pattern

    90 degree (H) x 60 degree (V)

  • Crossover Frequency

    2.2 kHz

  • Speaker Type

    Active 2-Way

  • Total Impedance

    NA
