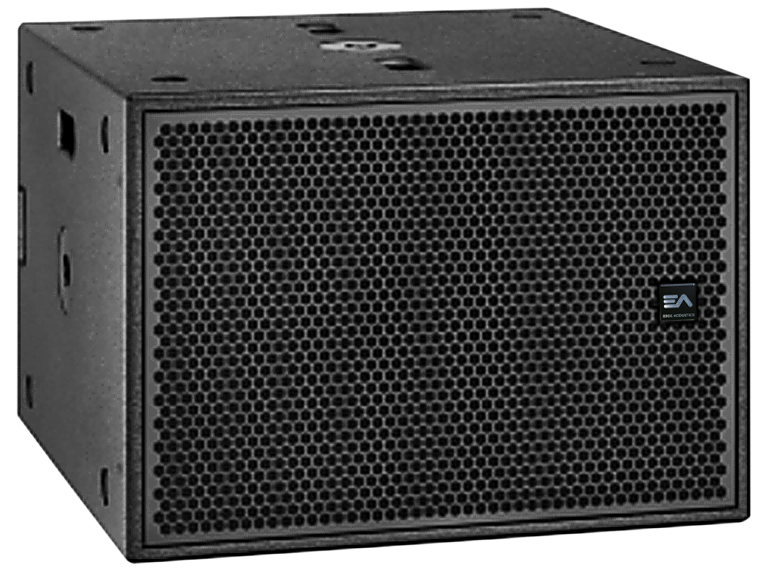

EA IQ-18A
Active Single 18′Subwoofer
■ It is equipped with a compact speaker system with a built - in power amplifier module and uses a long - stroke high - power woofer unit.
■ It has a built - in DSP processing chip and uses a high - hardness multi - layer plywood cabinet material.
Available here:
Product Characteristics
■ The improved handle box, incorporating ergonomics, enhances the convenience of speaker transportation. Two threaded bases with a diameter of 40mm, combined with the support rod, provide multiple ways to support full - range speakers, expanding the applications of the speakers.
■ It is suitable for large - scale language amplification, music applications, and small - to - medium - sized performances. Application scenarios include banquet halls, multi - functional halls, auditoriums, stadiums, shopping malls, and mobile performances.
Parameter
System type: Active Single 18′Subwoofer；
Drivers: LF: 1×18′(100mm voice coil)；
Frequency Response: 40Hz～250Hz(±3dB)；
Power(Rms/Program/Peak): 600W/1200W/2400W；
Sensitivity: 96dB；
Impedance: 8Ω；
Maximum SPL: 124dB；
Speaker Input:2×XLR/TRS；
Speaker Output：NL4MP×1；
Size（H×W×D）：520×728×700（mm）；
Size（H×W×D）：600×808×780（mm）；
Net Weight:48kg
gross weight：53kg
