EA PV8 Series Active Sound Column Speaker
Built-in DSP processing chip, Bluetooth, a variety of input interfaces; The advantage is that the medium frequency performance is thick and prominent, and the high hardness wooden box material is used.
Available here:

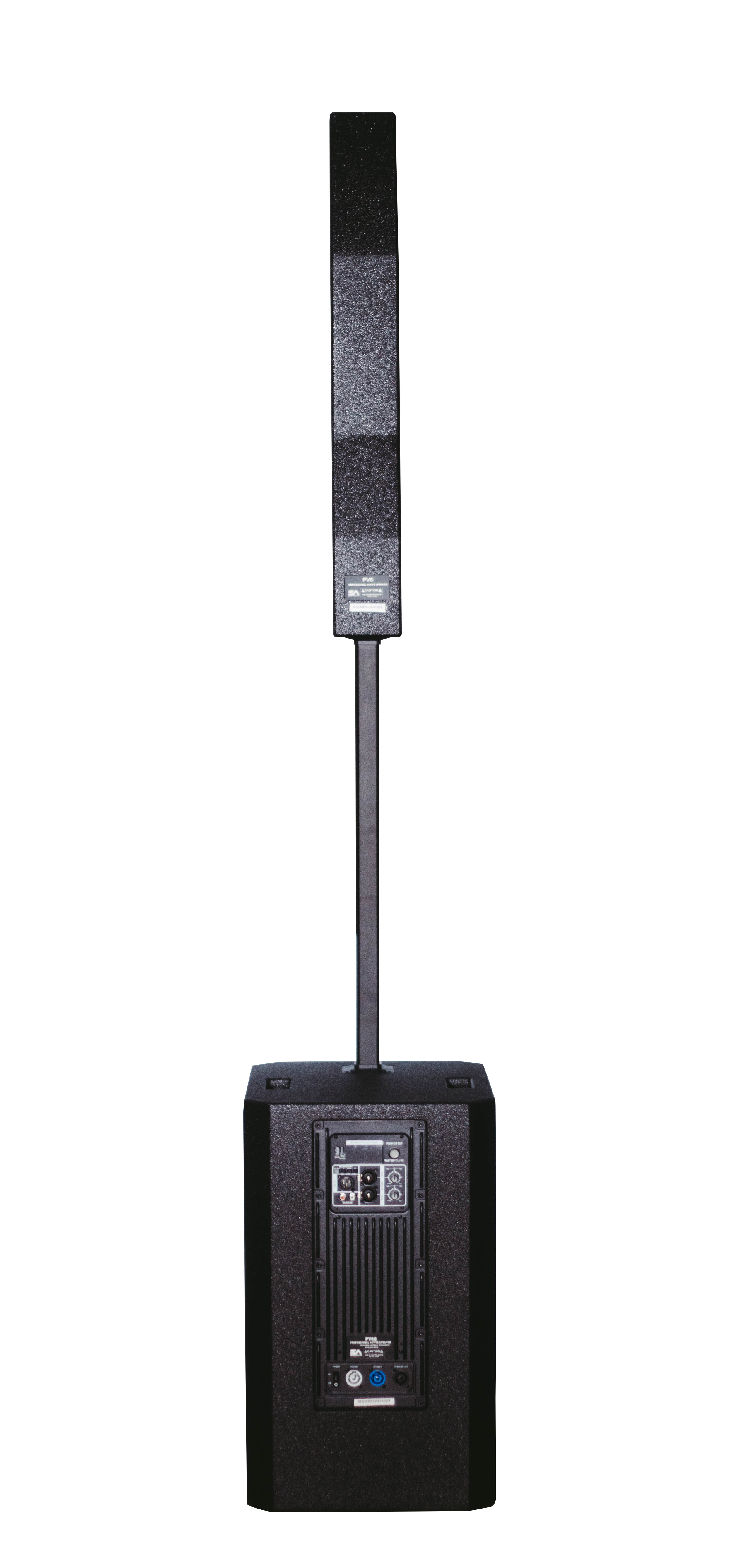

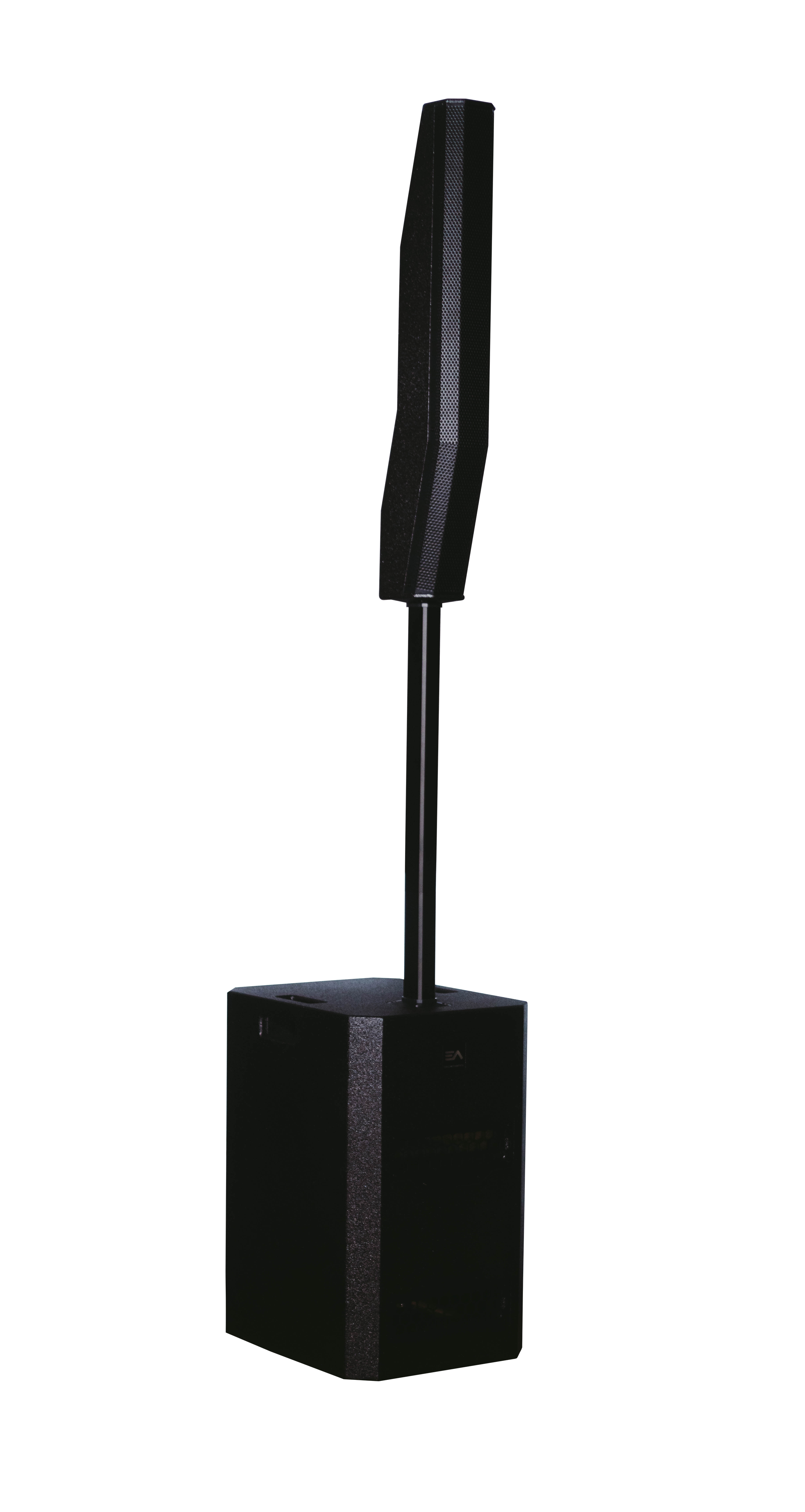

EA PV8 features a combination of eight 3-inch full-range speaker units and a 12-inch subwoofer, creating a compact ultra-low-frequency system with a built-in power amplifier module and a long-stroke rubber-edged bass unit. It is equipped with a built-in DSP processing chip, Bluetooth connectivity, and multiple input interfaces. The system excels in delivering rich and pronounced mid-frequency performance, housed in a high-rigidity wooden enclosure for enhanced sound quality.
Ideal Applications: Banquet halls, multi-function halls, auditoriums, gymnasiums, bars, shopping malls, mobile performances, and public venues.
EA PV-8
• LF parameter LF:8×3″ Ferrite
• Frequency response: 98Hz～16KHz
• Capacity (RMS / Program / Peak): 160W / 320W / 640W
• Coating angle: 20°V×100°H
• Sensitivity: 96dB
• Impedance: 4Ω
• Maximum sound pressure level: 118dB
• Connection: Bluetooth / USB / MP3
• Signal input: 2xXLR/TRS jack with combination of transmission microphone, Hi-Z guitar
• Cabinet size (HxWxD): 810X105X140 (mm)
• Weight: 6.5 kg
PARAMETER
EA PV-8
• System type: Eight 3′ Column Speaker；
• Drivers: LF: 8×3′(25mm voice coil)；
• Frequency Response: 98Hz～16KHz；
• Power(Rms/Program/Peak): 160W/320W/640W；
• Sensitivity: 96dB；
• Impedance: 4Ω；
• Maximum SPL: 118dB；
• Directivity Angle: 100ºH×20ºV；
• Signal Input:2×XLR/TRS "combo jack" mic/line/Hi-Z guitar
• Function：Bluetooth/USB/MP3
• Size（H×W×D）：810*105*140（mm）；
• N.W:6.5kg
EA PV-8S
System type: Single 12′ Subwoofer；
Drivers: LF: 1×12′(65mm voice coil)；
Frequency Response: 38Hz～200Hz；
Power(Rms/Program/Peak): 300W/600W/1200W；
Sensitivity: 96dB；
Impedance: 4Ω；
Maximum SPL:121dB；
Signal Input:2×XLR/TRS "combo jack" mic/line/Hi-Z guitar
Function：Bluetooth/USB/MP3
Size（H×W×D）：600*365*450（mm）；
N.W:21kg
EA PV-8S
• LF parameter LF:1×12″ Ferrite
• Frequency response: 38Hz～200KHz
• Capacity (RMS / Program / Peak): 300W / 600W / 1200W
• Sensitivity: 96dB
• Impedance: 4Ω
• Maximum sound pressure level: 121dB
• Connection: Bluetooth / USB / MP3
• Signal input: 2xXLR/TRS jack with combination of transmission microphone, Hi-Z guitar
• Cabinet size (HxWxD): 600X365X450 (mm)
• Weight: 21 kg
