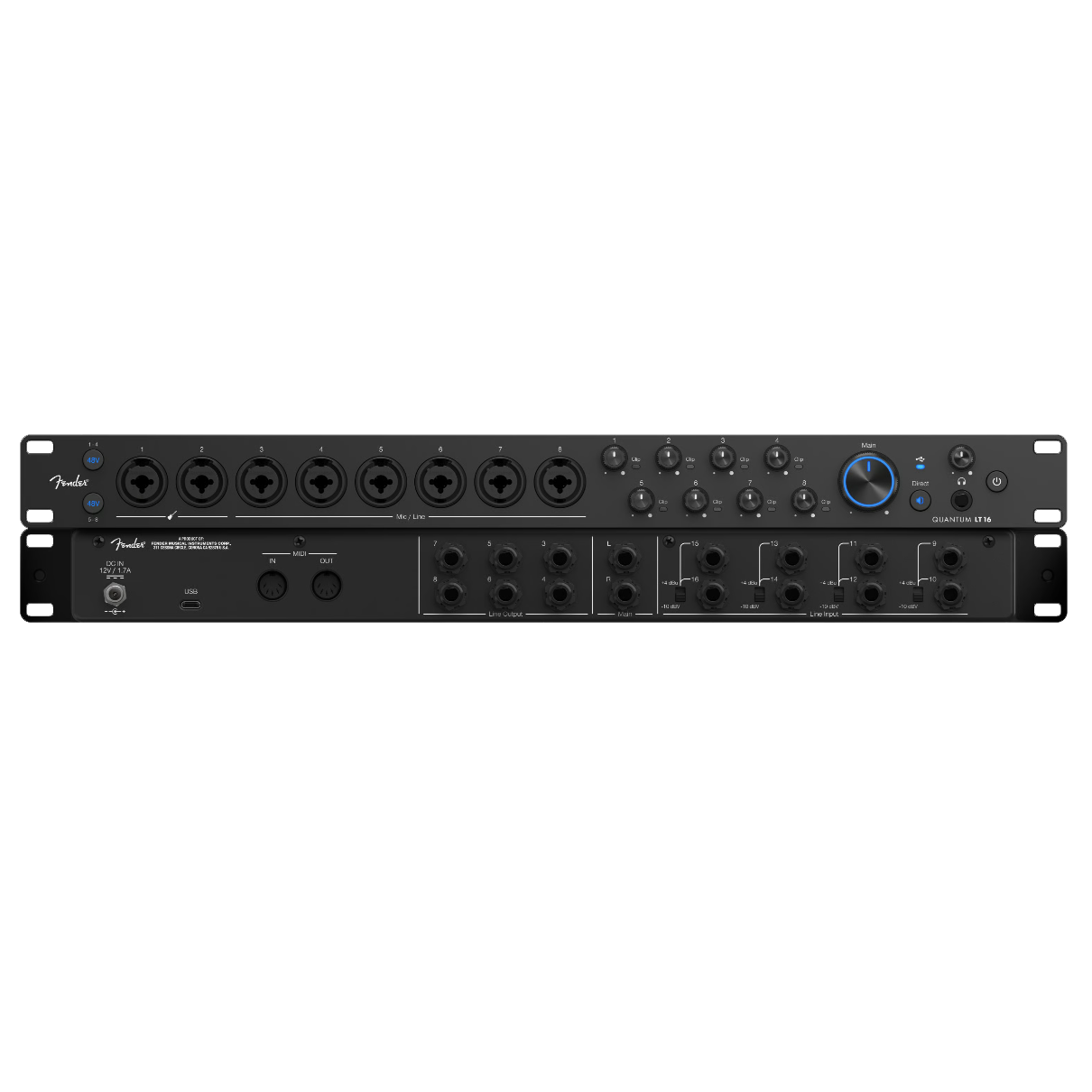

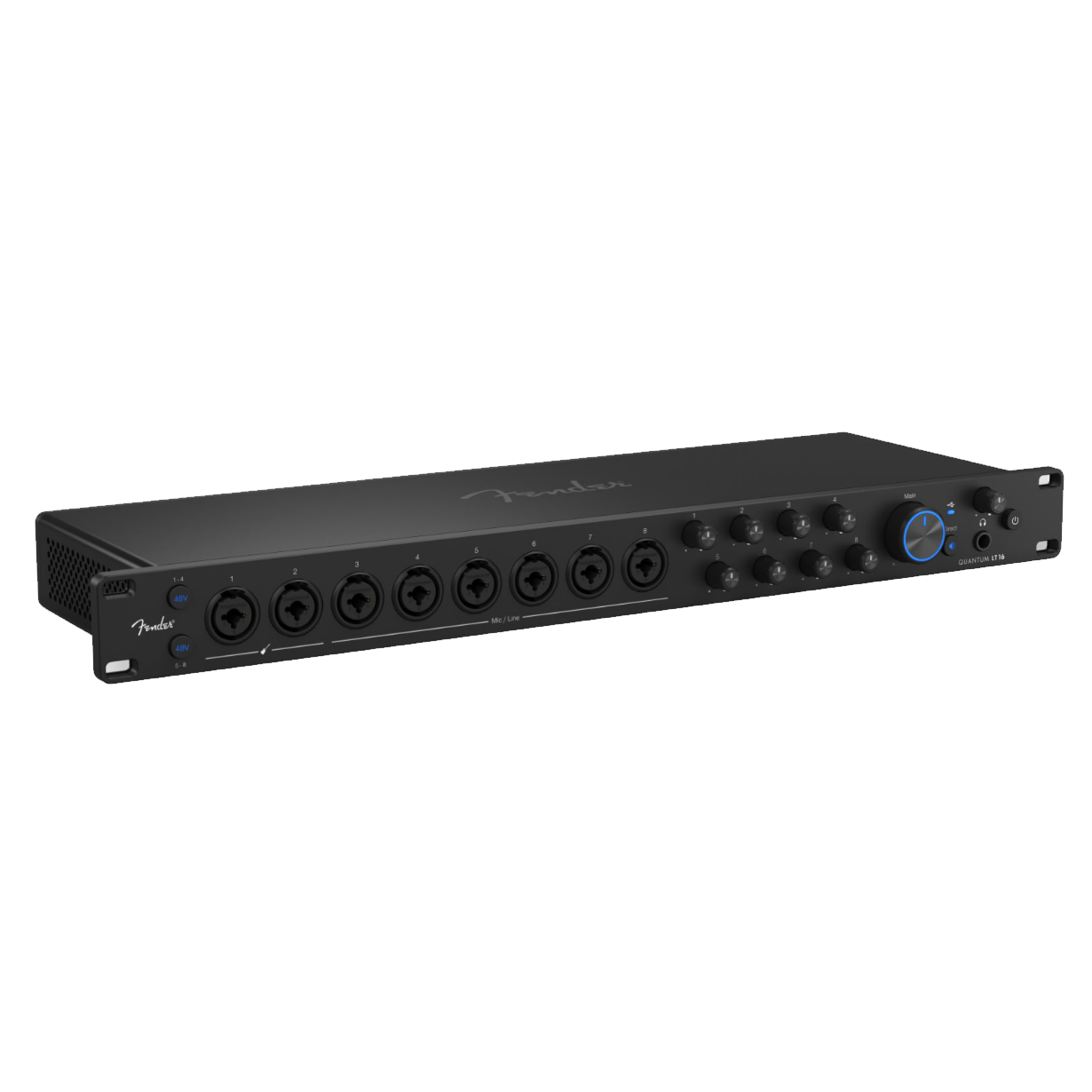

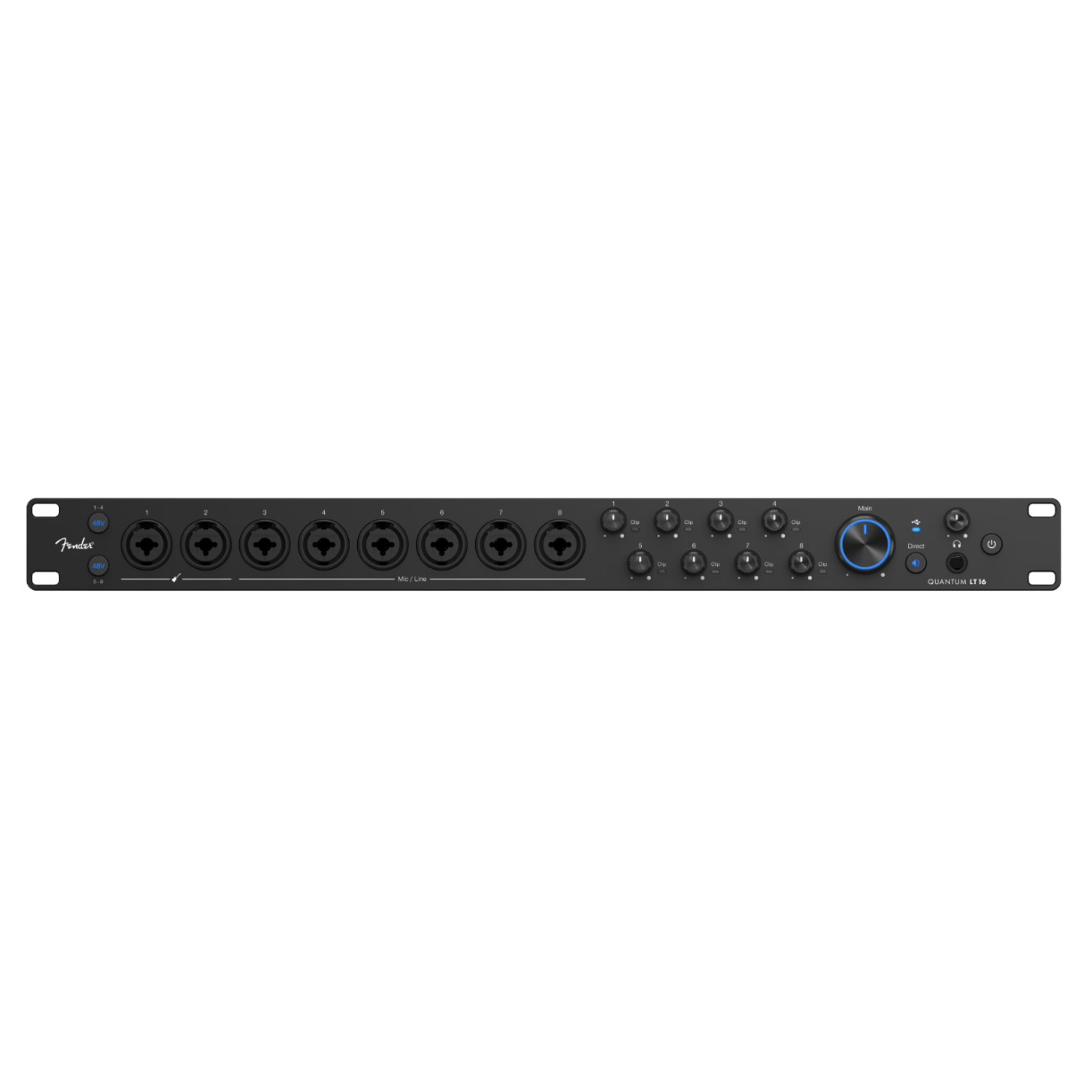

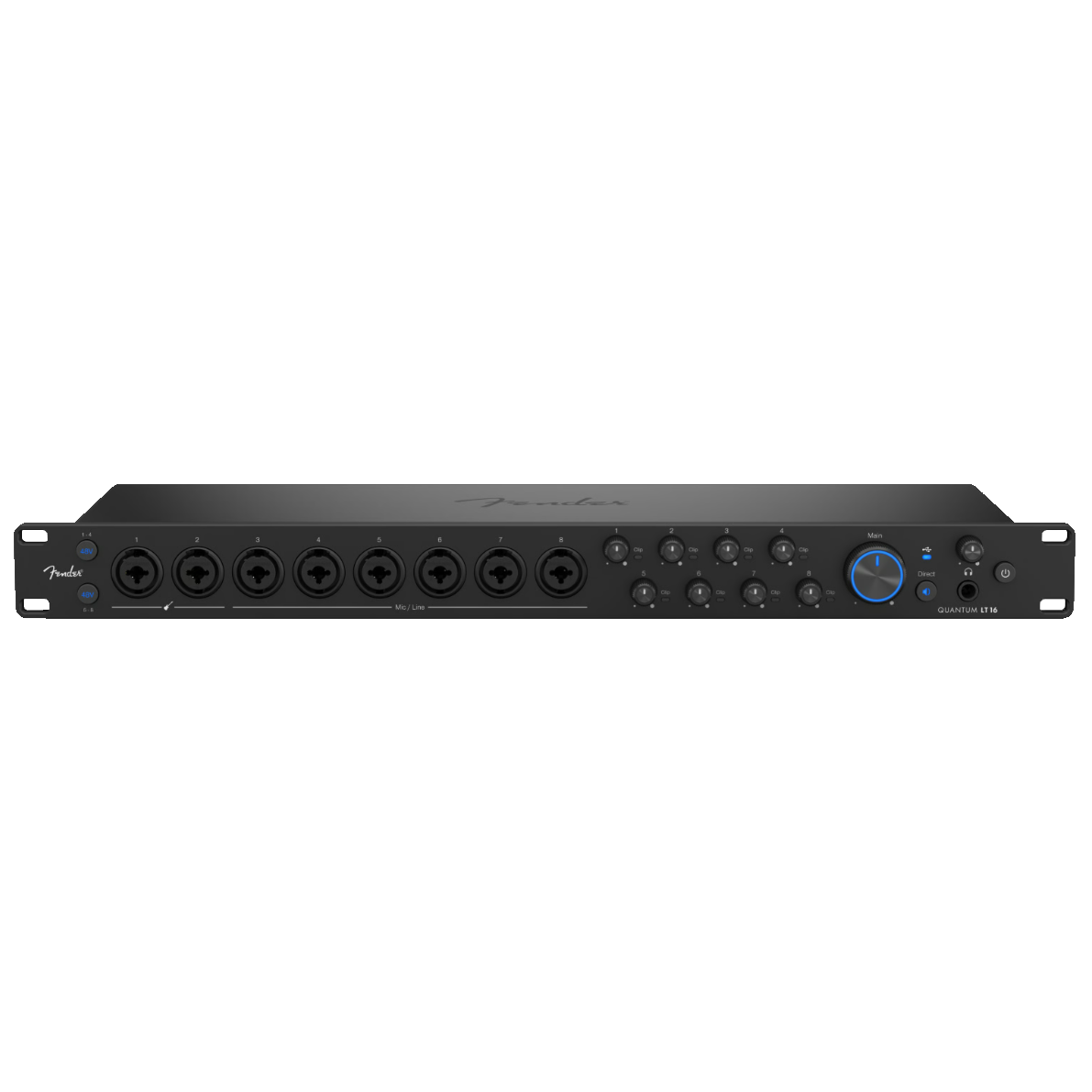

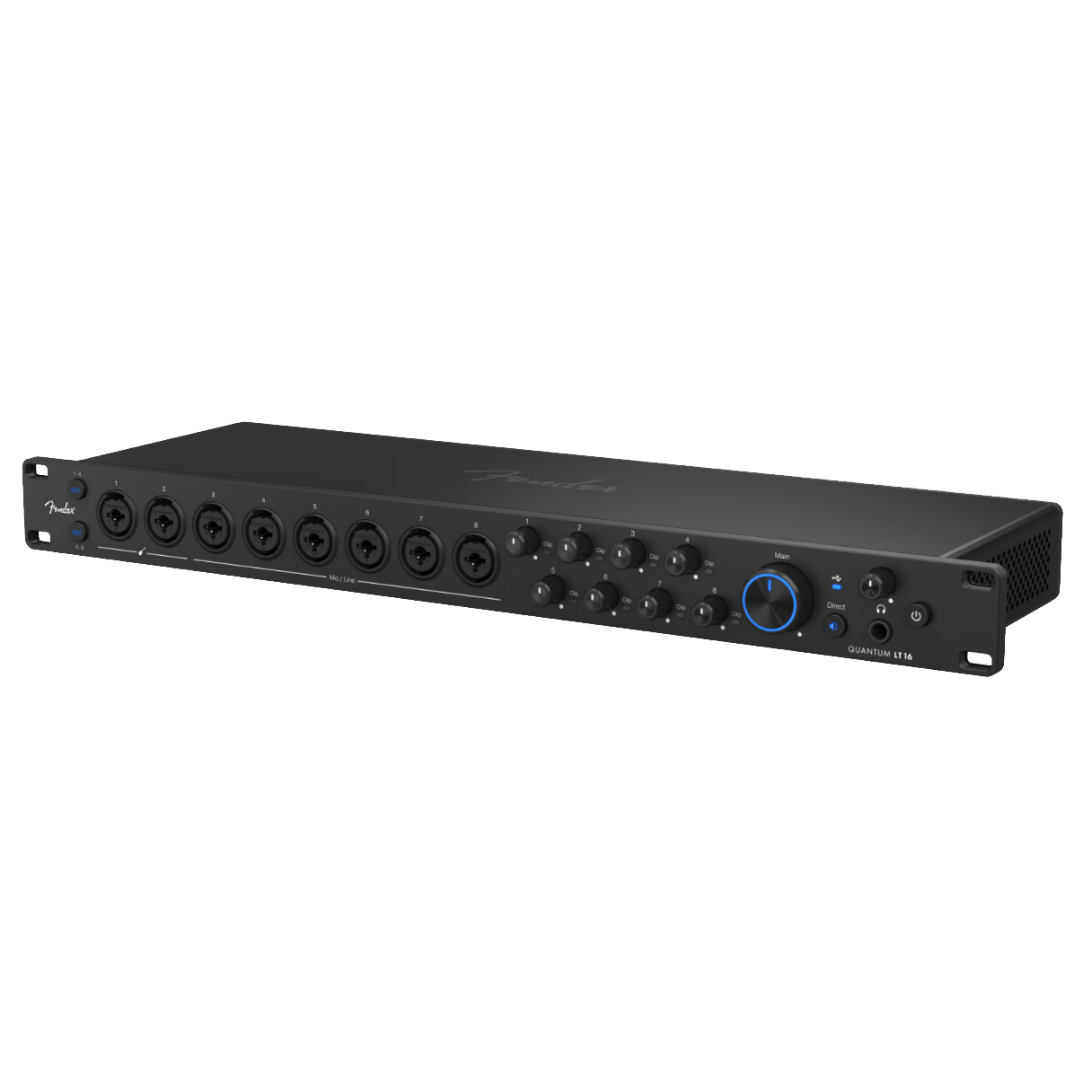

Quantum LT 16 USB-C Audio Interface
Fender Studio Pro Perpetual Included – Professional DAW with Mustang and Rumble plug-ins
16 x 8 USB-C Interface – Ultra-low-latency custom drivers (macOS/Windows)
Eight MAX-HD Mic Preamps with 75 dB Gain – Transparent, low-noise recording for large sessions
Available here:
Summary
The Fender Quantum LT 16 is the ultimate interface in the LT series, built for project studios, multi-instrument setups, and electronic musicians who demand maximum flexibility. With eight MAX-HD mic preamps offering a massive 75 dB of gain — the most in its class — LT 16 captures pristine sound from large ensembles, drum kits, or multi-mic sessions. Fender-designed instrument inputs and professional-grade converters ensure guitars, basses, and all your sources sound natural and dynamic.

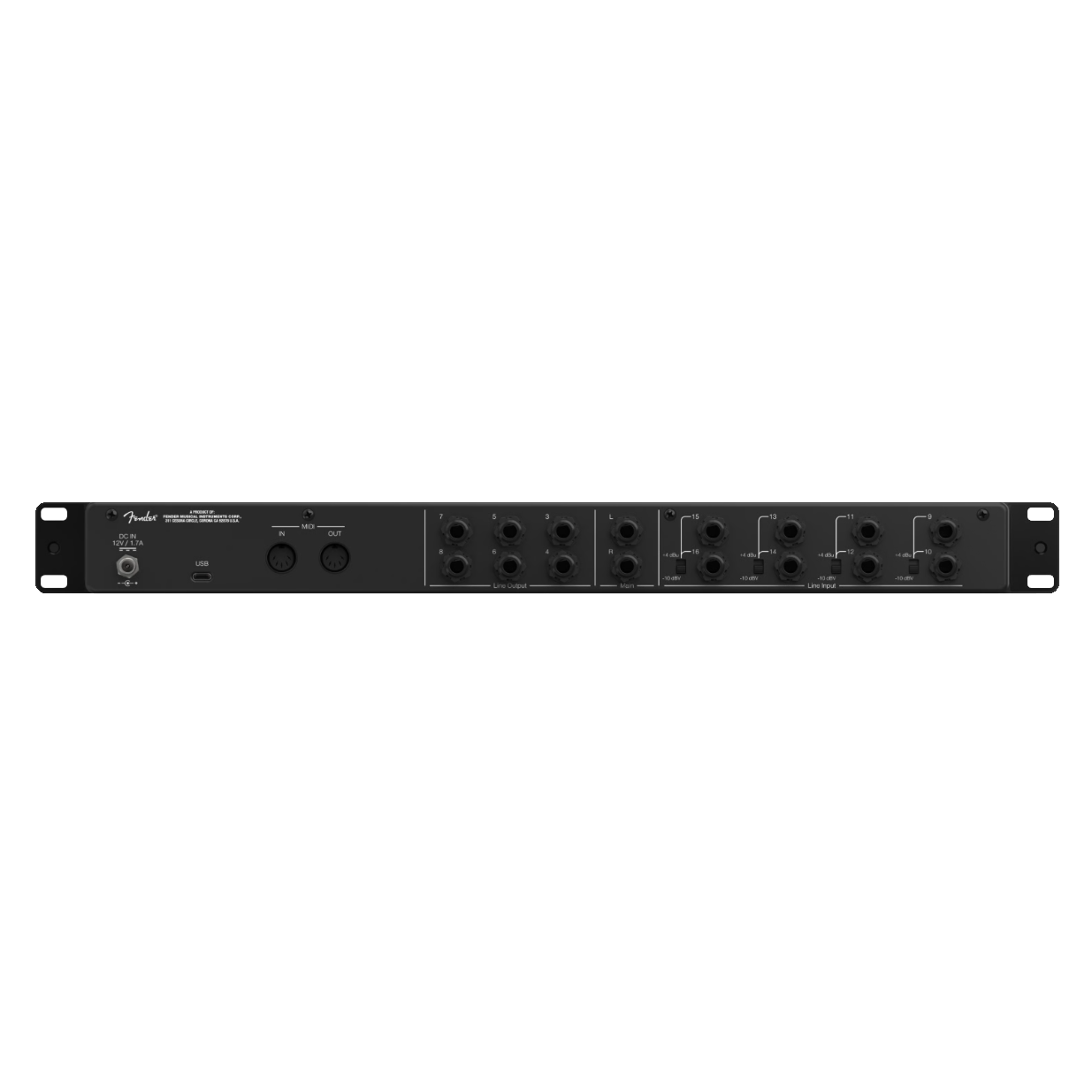

In addition to the six front panel line inputs, the LT 16 features eight rear panel TRS analog line inputs for effortless integration with outboard gear such as external mic preamps, synthesizers, mixers, or other line-level devices — expanding your studio’s sonic palette without complicating your setup.
Fender Quantum LT’s blazing-fast, custom low-latency drivers (macOS/Windows) provide an ultra-responsive recording experience, while balanced TRS outputs and a powerful headphone amp give you versatile monitoring options. LT 16 also unlocks exclusive features: Standalone “Mic Pre Mode” transforms it into an 8-channel mic preamp, DC-coupled outputs bring CV control to your modular synth rig, and 5-pin MIDI I/O ensures seamless hardware integration. A perpetual license for Fender Studio Pro is included, offering a professional DAW with exclusive Mustang and Rumble plug-ins.
Features
Fender Studio Pro Perpetual Included – Professional DAW with Mustang and Rumble plug-ins
16 x 8 USB-C Interface – Ultra-low-latency custom drivers (macOS/Windows)
Eight MAX-HD Mic Preamps with 75 dB Gain – Transparent, low-noise recording for large sessions
A Total of 14 Line Inputs – for easy connection of mic pres, synths, mixers, and other line-level devices:
6 front panel XLR/TRS (combo jacks 3–8)
8 rear panel TRS inputs with switchable 4 dBu / -10 dBV operation
Dual Fender-Designed Instrument Inputs – Optimized for guitars, basses, and other instruments
Balanced TRS Outputs & Headphone Monitoring – Professional-quality, flexible monitoring
Loopback Audio – Streaming, podcasting, and mix routing
Standalone Mixer Mode & Mic Pre Mode – Analog mixing or 8-channel mic preamp operation
DC-Coupled Outputs – Integrate modular synths and analog gear
5-Pin MIDI I/O – Hardware integration without external MIDI interface
Built-in MyFender Access – Quick setup, registration, and support
Specs
General
Product Name
Quantum LT 16 USB-C Audio Interface
Series
Quantum
Color
Black
Microphone Inputs
Connection Type
XLR Female (Combo), Balanced
Frequency Response
20 Hz to 20 kHz
Dynamic Range
115 dB
EIN
-128.6 dBu
THD+N
0.001%
Gain Range
75 dB
Maximum Input Level
+18 dBu
Phantom Power
+48 VDC
Line Inputs
Connection Type
1/4" TRS Female
Frequency Response
20 Hz to 20 kHz
Dynamic Range
115 dB (+4 dBu) / 113 dB (-10 dBV)
THD+N
0.001 % (+4 dBu) / 0.0009 % (-10 dBV)
Maximum Input Level
+18 dBu
Instrument Inputs
Connection Type
1/4" TS
Frequency Response
20 Hz to 20 kHz
Dynamic Range
114 dB
THD+N
0.003%
Maximum Input Level
+22 dBu
Main Outputs
Connection Type
1/4" TRS Female
Line Outputs
Connection Type
1/4" TRS Female
Maximum Output Level
+18 dBu
Headphone Outputs
Connection Type
1/4" TRS Female
Frequency Response
20 Hz to 20 kHz
Dynamic Range
114 dB
THD+N
0.01 %
Maximum Output Level
142 mW/Channel (60Ω Load)
Power
Voltage
120V
Voltage Requirements
100-240 VAC, 50-60 Hz
Digital Audio
Connectivity
USB-C®
Bit Depth
24 Bit
Dynamic Range
115 dB
Supported Sample Rates
44.1, 48, 88.2, 96, 176.4, 192 kHz (kHz)
Measurements
Height
1.75" (44.45 mm)
Depth
5" (127 mm)
Width
19" (483mm)
Weight
4.8 lbs. (2.2 kg)
MIDI I/O
Connection Type
5-Pin Female DIN
Documentation
Software
Highlights
TWO MAX-HD MIC PREAMPS
Capture clean, detailed sound with two MAX-HD mic preamps delivering up to 75 dB of transparent gain, pristine converters, and custom low-latency drivers—ensuring responsive monitoring and professional results for every session.

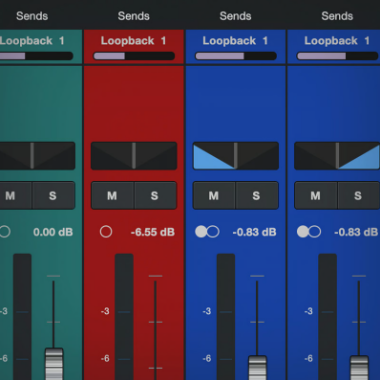

LOOPBACK AUDIO
Easily mix in system audio with your session for podcasting, streaming, and content creation, no extra hardware required.
CUSTOM LOW-LATENCY DRIVERS
Record and monitor in real time with drivers that outperform typical USB interfaces (macOS/Windows), making the LT 4 a responsive tool for serious creators.
FENDER STUDIO PRO - 6 MONTH TRIAL
Your hardware registration includes a Fender Studio Pro 6 Month Trial — a great way to start recording and a powerful entryway into the Fender Studio universe. Users can upgrade to Fender Studio Pro when they're ready to take their game to the next level. Compatible with virtually all macOS, and Windows.
