Back to the Music

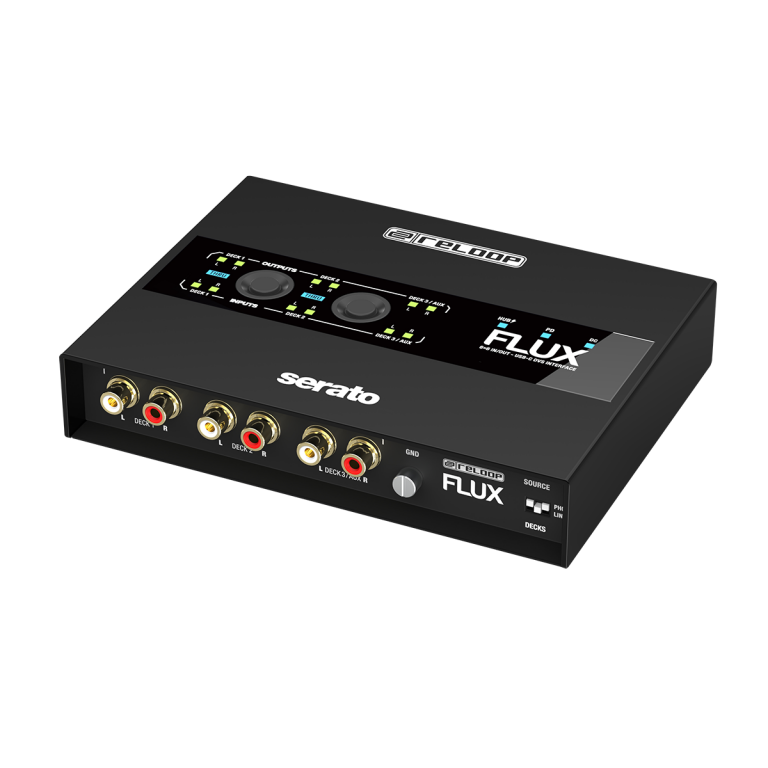

The Reloop Flux is a next-generation USB-C interface for using Serato DJ Pro with turntables, CDJs or other media players. The interface boasts superior audio qualities, a well-designed operating concept and a club-ready design. It can transform any conventional mixer into a professional digital vinyl system.

Always Powered

The Flux is bus-powered by a computer, so there's minimal wiring required for audio and power cables. The DVS interface can also be powered by external power sources through the USB-C DC input, allowing turntables and CDJs to be used in Thru mode even without a computer connected. The Flux's second USB-C port provides Power Delivery support for other USB-C devices (max. 60 W), such as a MacBook.

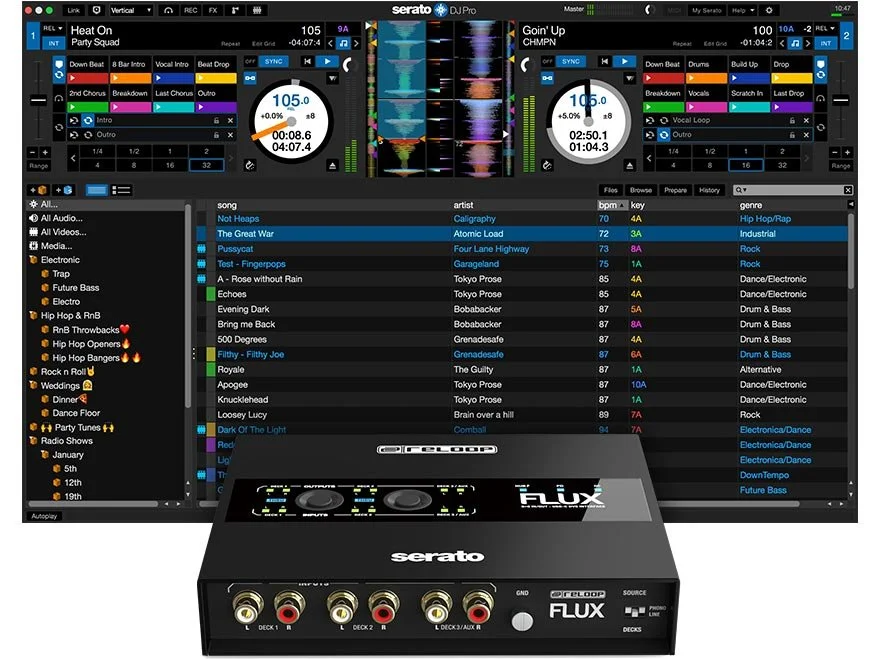

Plug & Play for Serato DJ Pro

The Reloop Flux unlocks the full version of Serato DJ Pro and Serato DVS. This means DJs can get up and running with the market-leading digital vinyl system in no time. Additional licences are not necessary.

Unlocks full version of

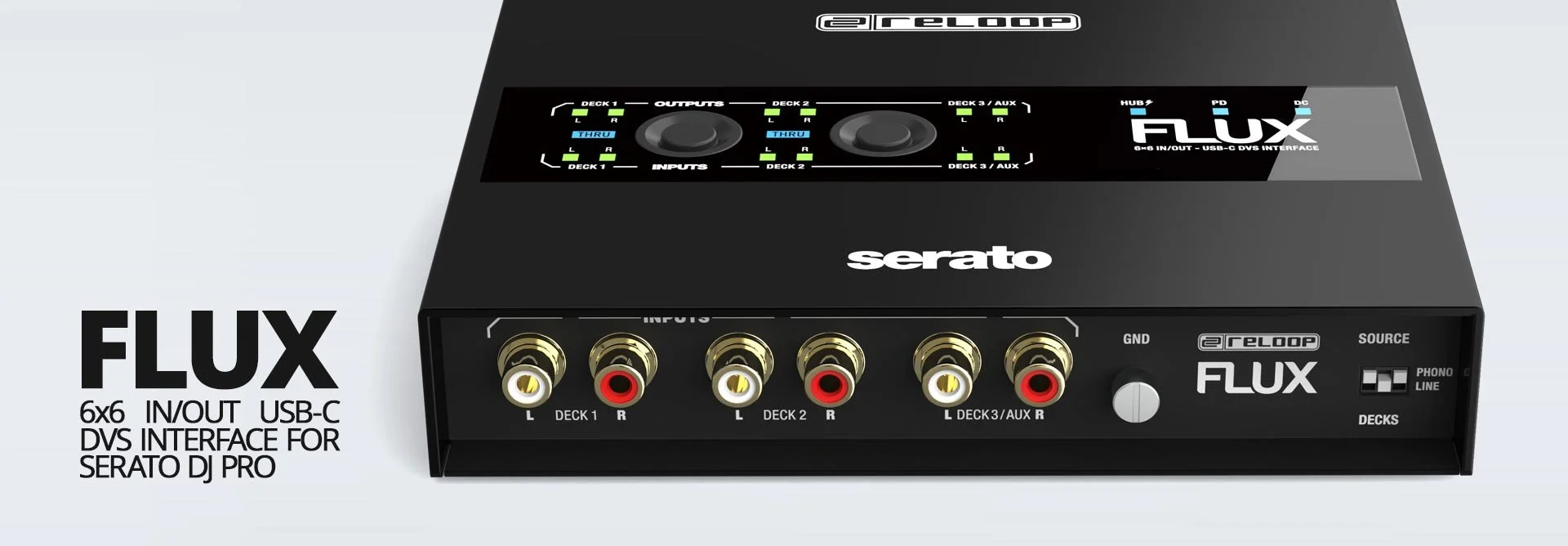

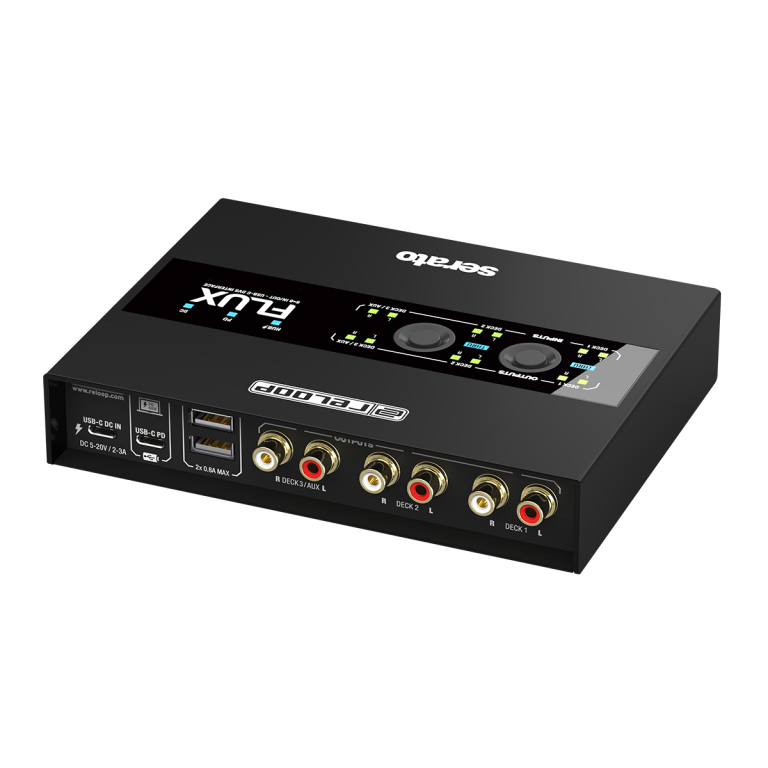

Flux

  • Next-gen USB-C DVS audio interface for Serato DJ Pro

  • Studio-grade 24-bit/96 kHz sound card with superior audio and ultra-low latency

  • Heavy-duty club design with Power Delivery support and USB hub

Specifications

Features

  • 3-channel (6x6 in/out) USB-C DVS interface for Serato DJ Pro

  • Turn any mixer into a professional digital vinyl system

  • Unlocks full version of Serato DJ Pro and Serato DVS

  • Studio-grade 24-bit sound card with crystal-clear audio and ultra-low latency response

  • Supports up to 96kHz with high-quality D/A converters for superior audio processing

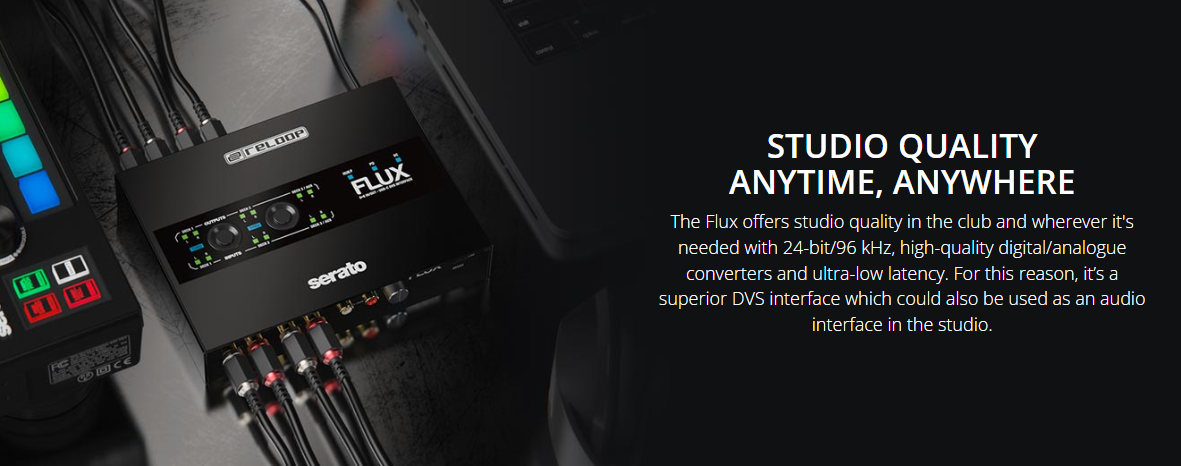

  • Also functions as a stand-alone studio interface for recording and playback audio

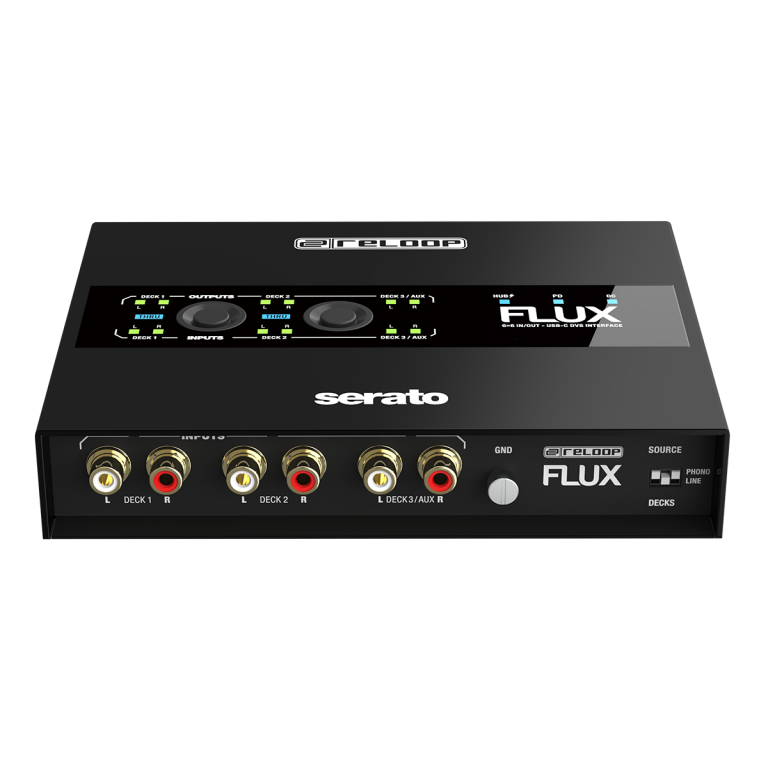

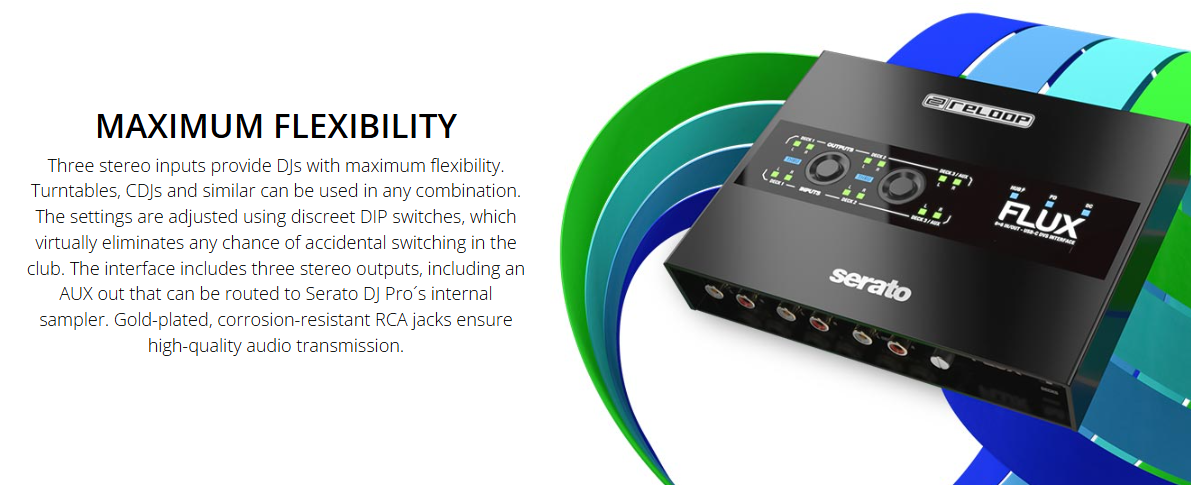

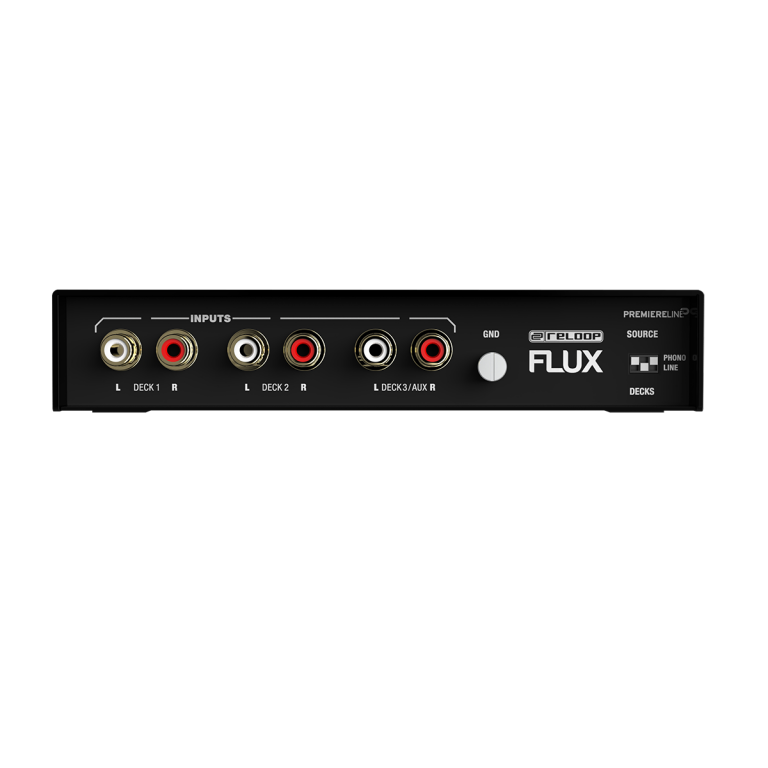

  • 3x inputs for turntables, CD players or AUX-In for live feed signal, switchable in any combination via dedicated dip switches

  • Dedicated GND terminal for grounding turntables

  • Gold-plated, corrosion-resistant audio connections

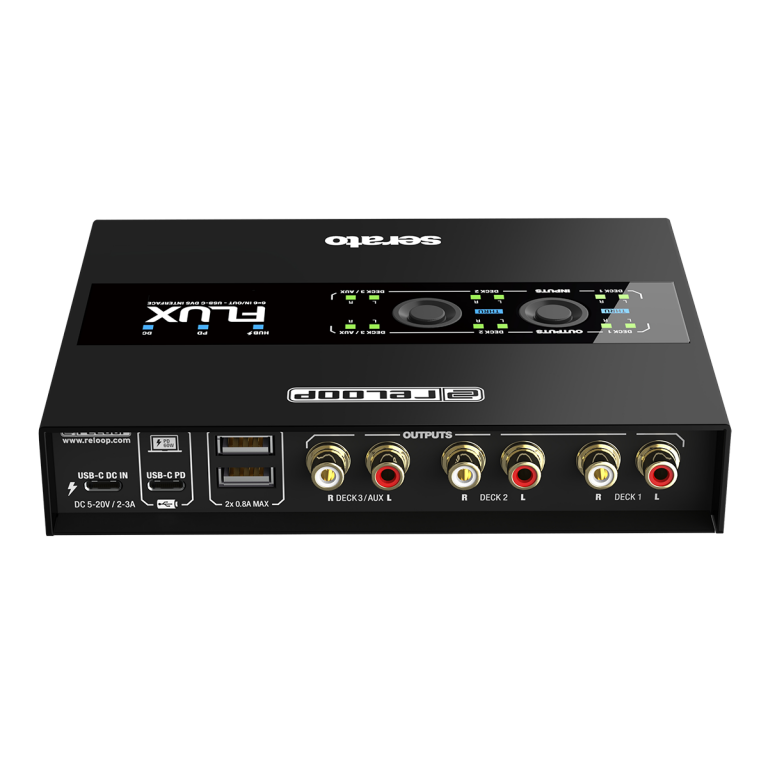

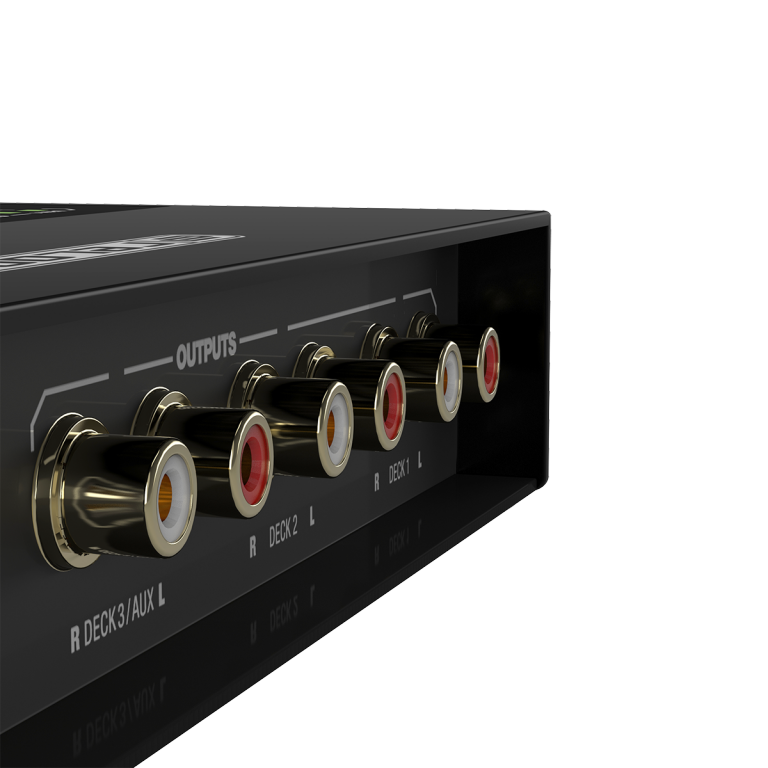

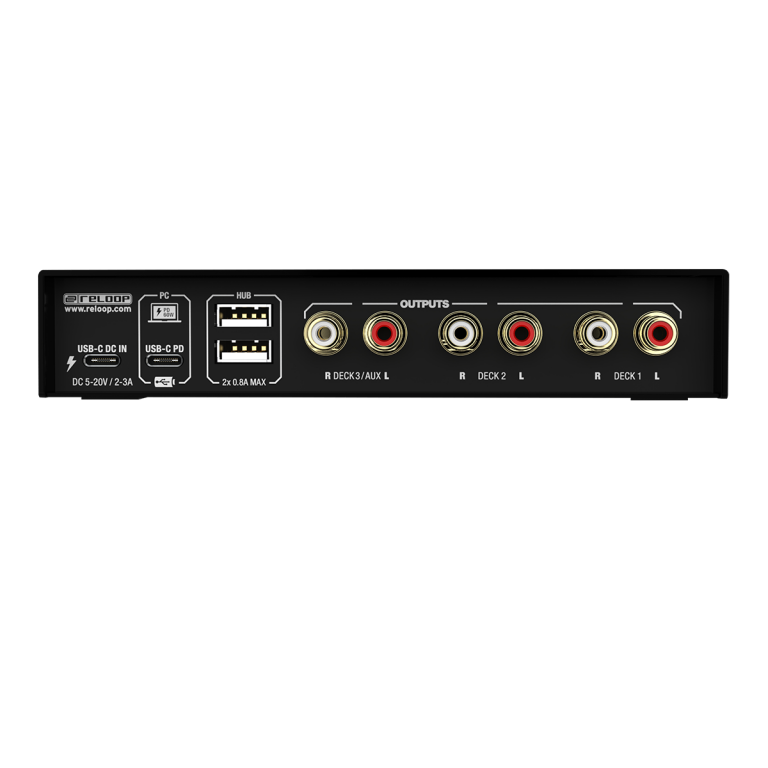

  • 3x line outputs, including AUX-Out, assignable to the Sampler

  • Easy, accessible direct thru buttons for analogue deck playback

  • All terminals are visible from the top of the unit for easy installation in dark surroundings

  • Bus-powered cable connection for power and audio

  • Optional USB-C DC in port for external power supply

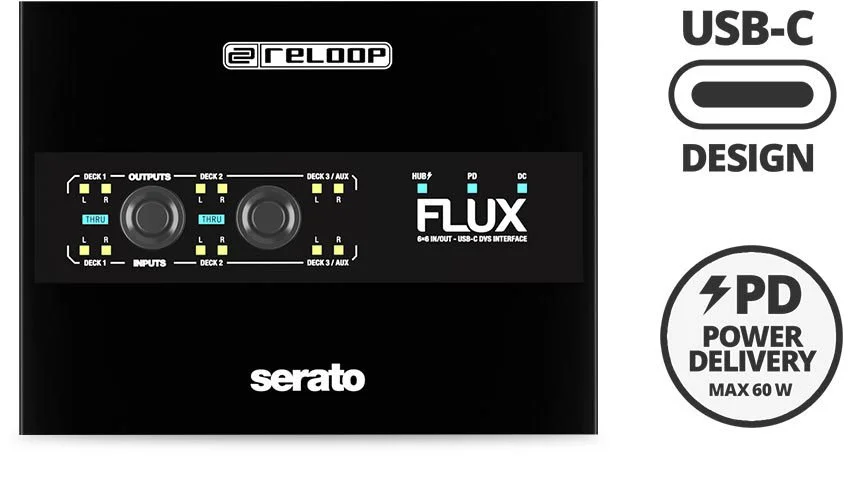

  • Power delivery support for USB-C devices (max 60W)

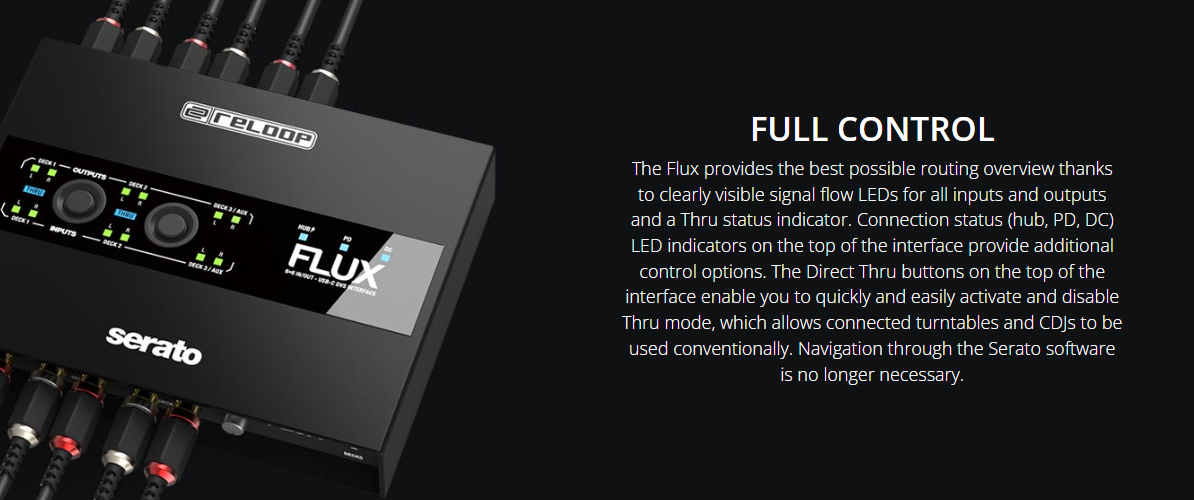

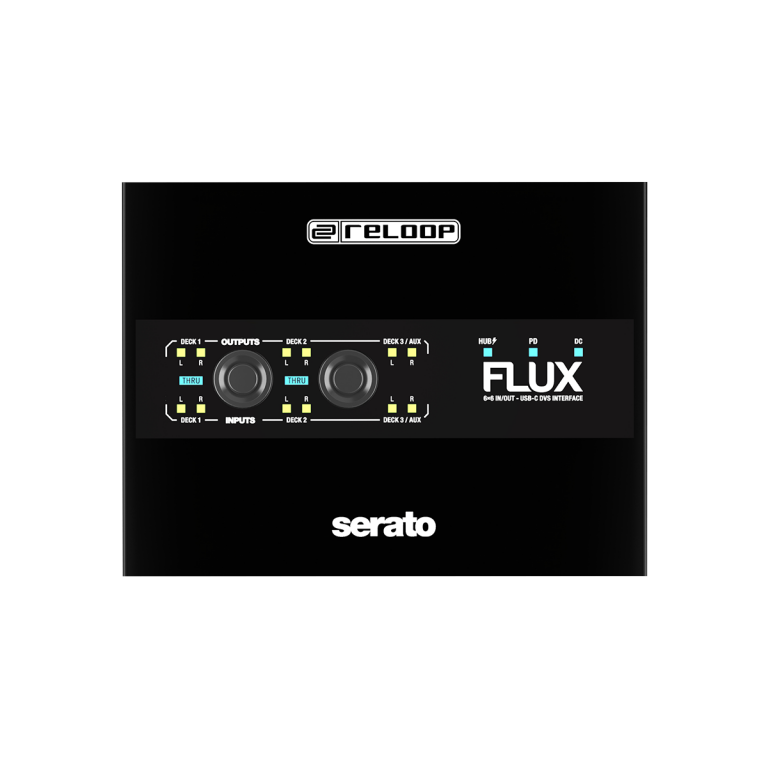

  • Signal-flow LEDs for all inputs and outputs (L/R) and thru indication for clear visibility

  • Power LEDs on the top panel for connection status (Hub, PD, DC)

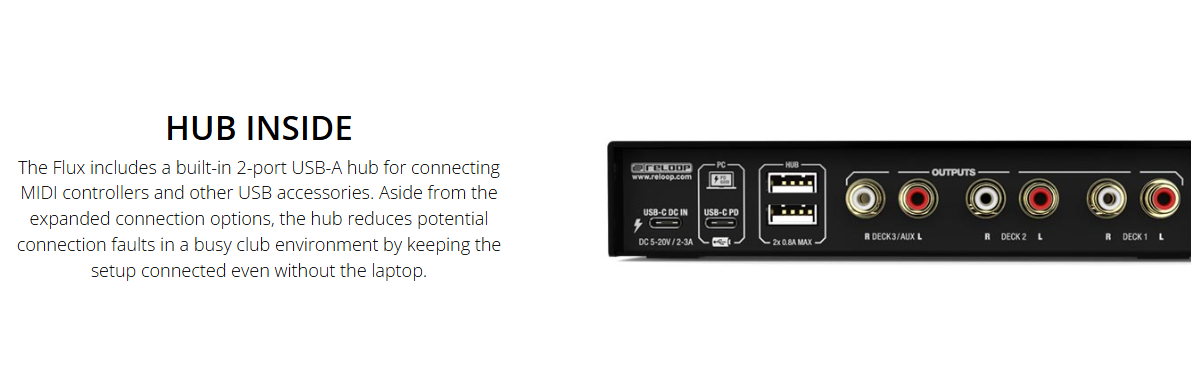

  • 2-port USB-A hub for connecting further accessories

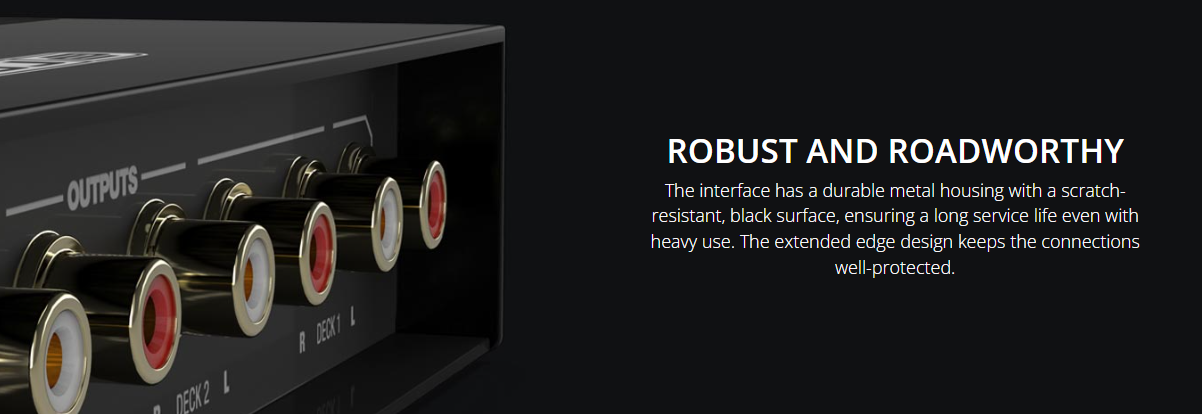

  • Rugged, heavy-duty metal housing with a scratch-resistant black finish for durability on the road and reliability in the club

  • Highly robust, extended edge design to protect connection terminals

  • Supports the use of Serato NoiseMap™ control vinyl (not included) or custom control signal WAV file for use via CDs or USB drive (download available) with no additional license purchase needed

  • Including: 2x RCA audio cables, 1x USB-A to USB-C, 1x USB-C to USB-C, instruction manual

Technical Data

  • Power:

    • USB bus powered: Yes

    • Recommended power: 2 A or higher / minimum power: 400 mA

    • Maximum USB-PD throughput: 60 W

    • Maximum USB Hub power output: 2 x 0.8 A = 8 W

    • Supported external USB (type A or C) power supply: 5 V/1 A - 20 V/3 A

    • Power supply priority: FLUX self-power -> USB Hub -> PD (to PC)

    Audio:

    • S/N Ratio (output reference level 1 kHz, +4 dB):

    • Deck In (LINE signal input: 0 dBV): More than 83 dB

    • Deck In (PHONO signal input: -32 dBV): More than 73 dB

    • THD + N:

    • LINE signal input: -4 dBV @1K / Less than 0.03% (1 kHz,+0 dB)

    • PHONO signal input: -36 dBV @1K / Less than 0.05% (1 kHz,+0 dB, Inverse RIAA)

    Maximum Gain:

    • Deck In (LINE): +4 dB ± 2 dB

    • Deck In (PHONO): +36 dB ± 2 dB

    • Maximum Input (1 kHz, THD=1%):

    • Deck In (LINE): More than +7 dBV

    • Deck In (PHONO): More than -25 dBV

    • Maximum Output (1 kHz, THD=1%):

    • Deck Output: More than +11 dBV

    USB:

    • USB audio interface with 24 bit/44.1 kHz, 48 kHz, 96 kHz

    • USB 2.0 high-speed (480 Mbit/s)

    • Class-compliant on macOS

    • USB Power Delivery Protocol 3.0

    General:

    • Dimensions: 160(W) x 120(D) x 34(H) mm

    • Weight: 0.85 kg

    Including:

    • User Manual

    • 1x USB type C/C cable

    • 1x USB type C/A cable

    • 2x RCA cables

Reviews

“With the Flux, Reloop have delivered an interface which provides a level of quality and features which go far beyond what DJs dared to hope for. An essential addition to any DJ’s toolkit.”

"Reloop has a real knack for spotting much needed, niche items, and this one’s a belter."

"It‘s pretty amazing to have all this directly on the box."

"The true beauty of the product is that after it’s plugged in, you can forget about it since it’s doing everything it needs to do."

"Für 399,- Euro bekommt man jede Menge Technik, die sich schon allein durch die Serato DJ Pro Lizenz samt DVS-Unterstützung mehr als rechnet."

"Reloop has really thought of everything with this one."

"This Flux makes any mixer DVS compatible and that is absolutely fantastic."

Accessories

Flux Bag

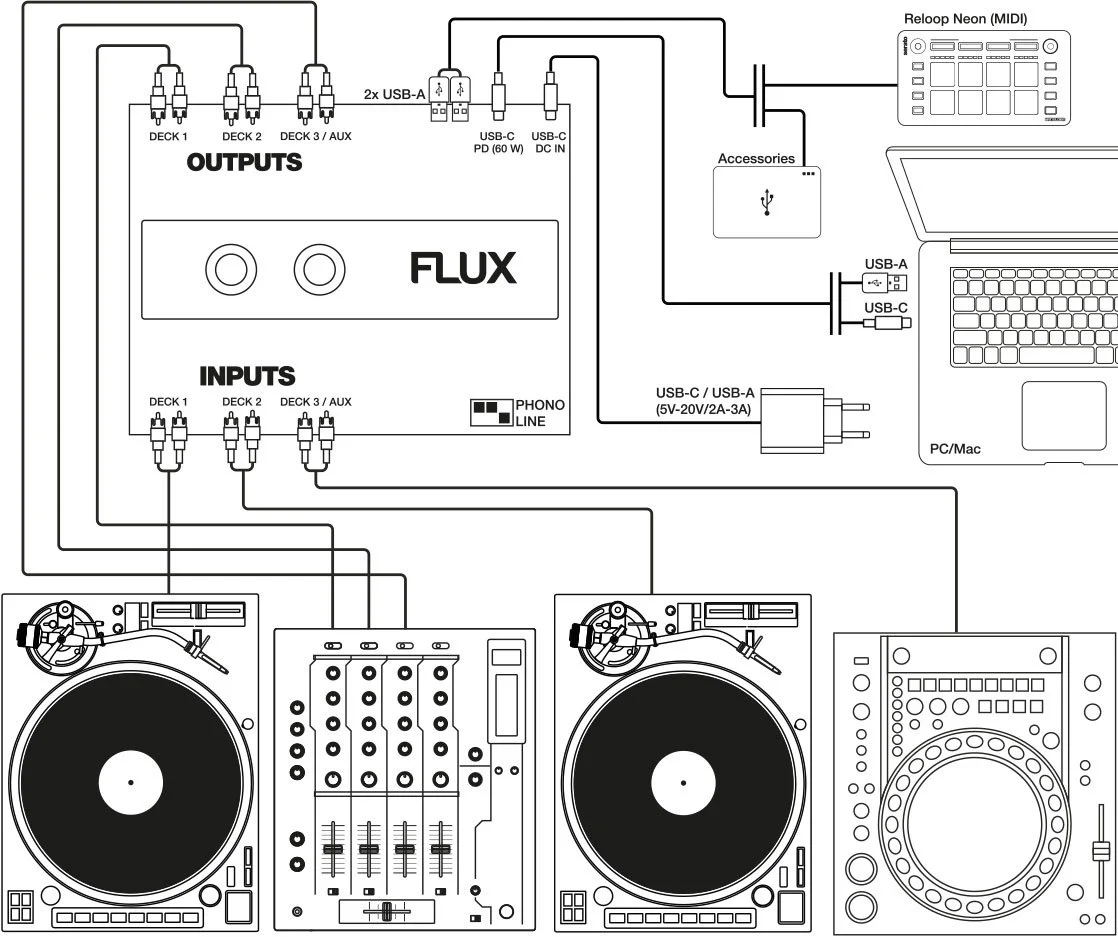

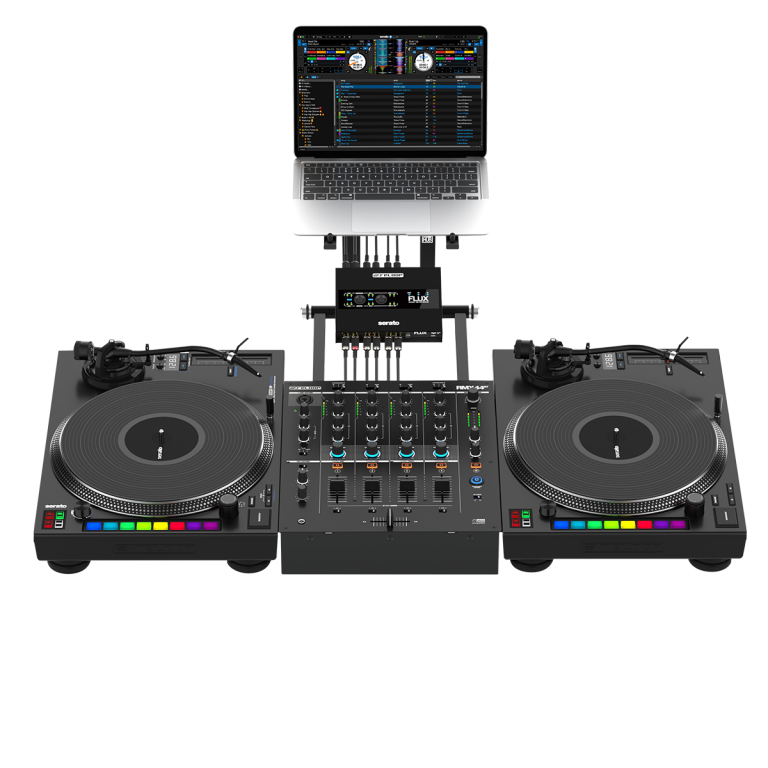

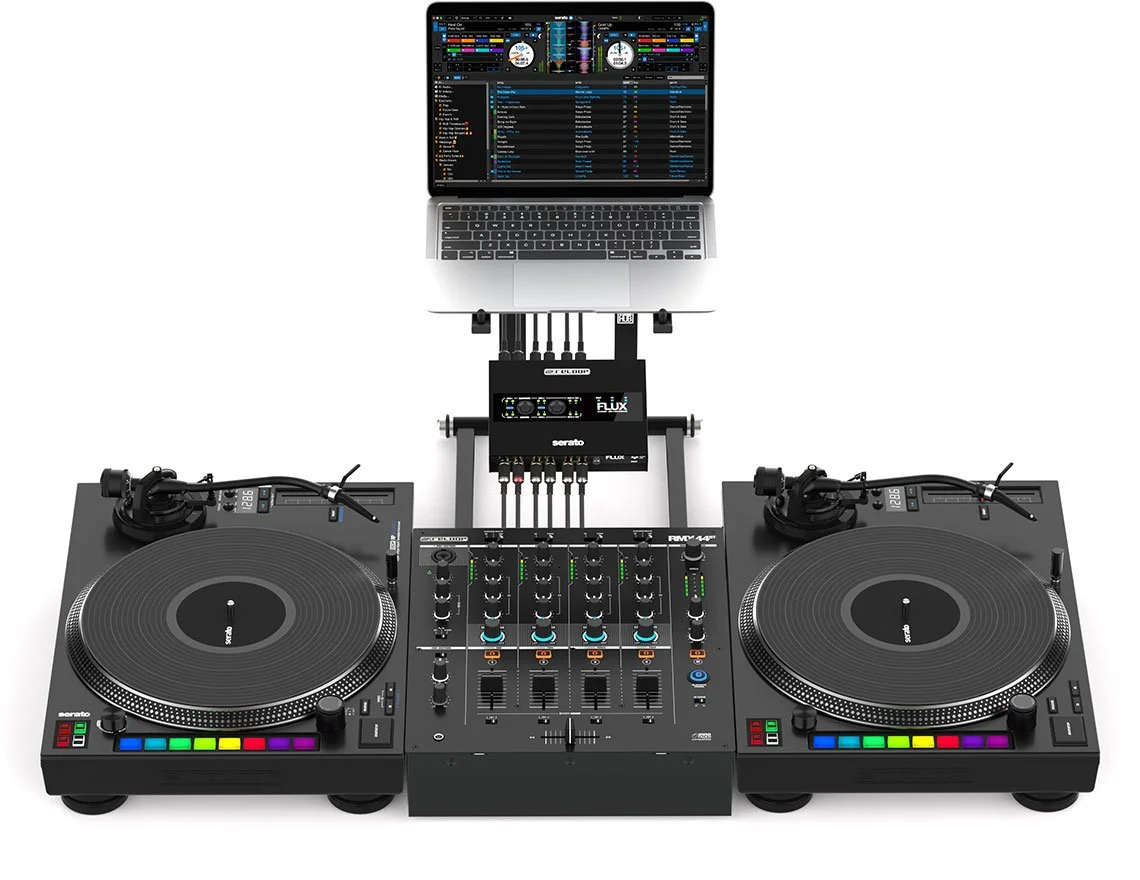

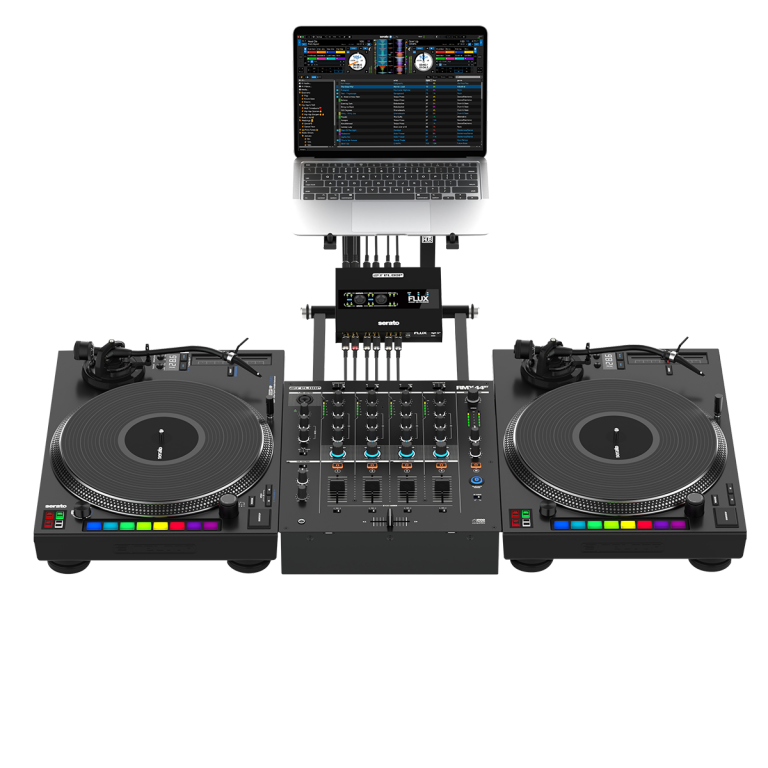

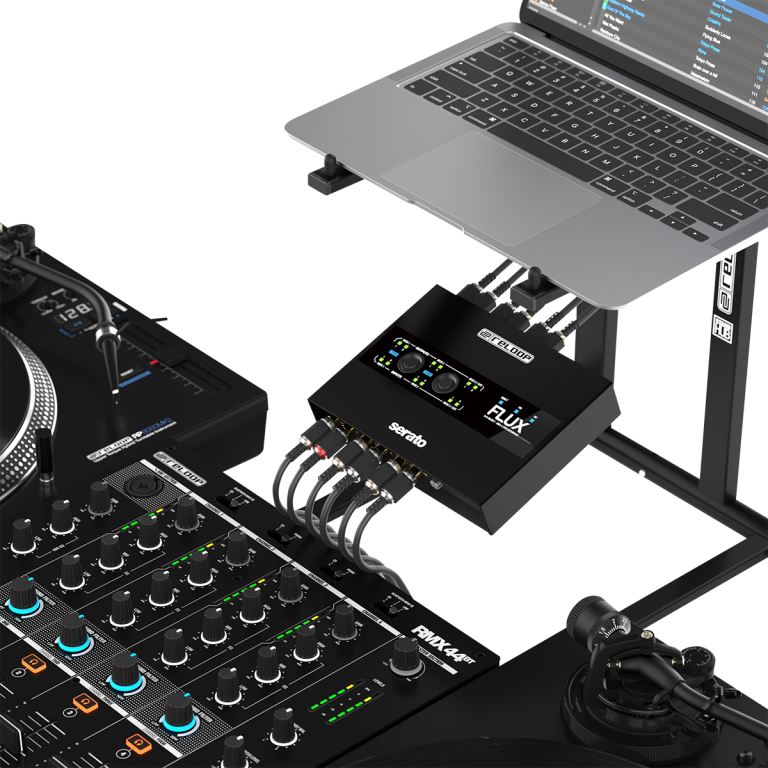

Setup Examples
