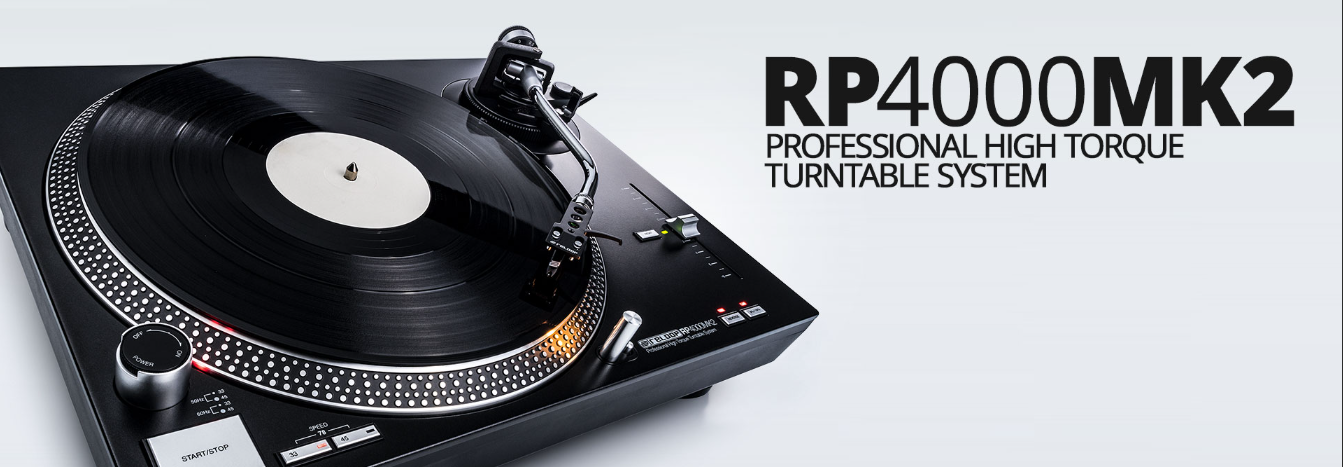

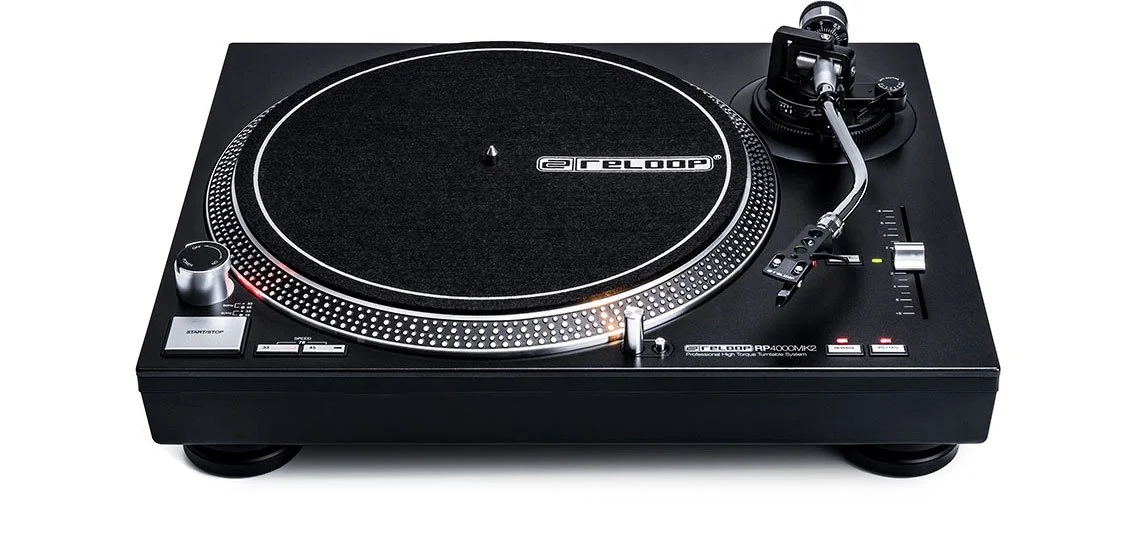

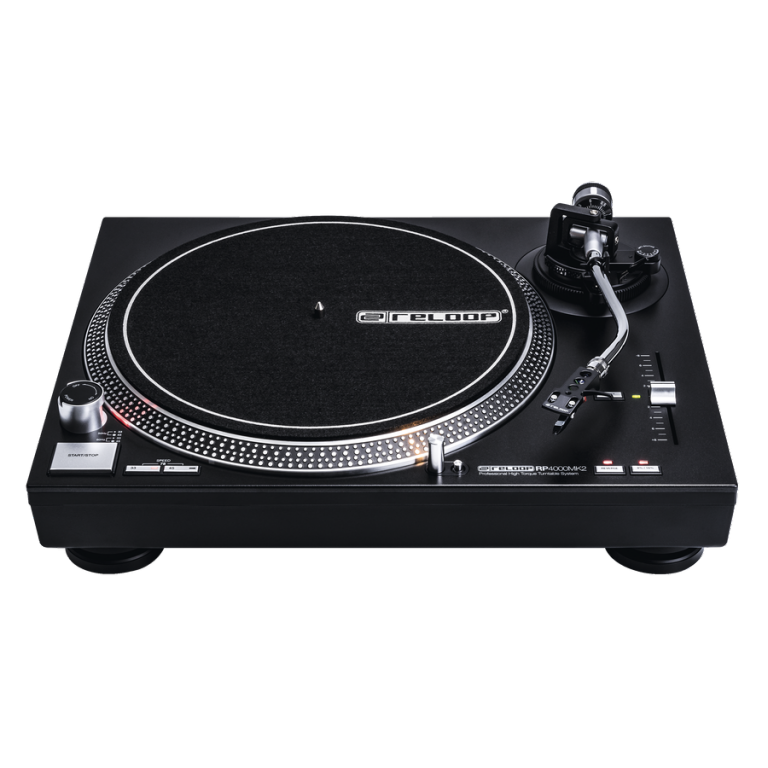

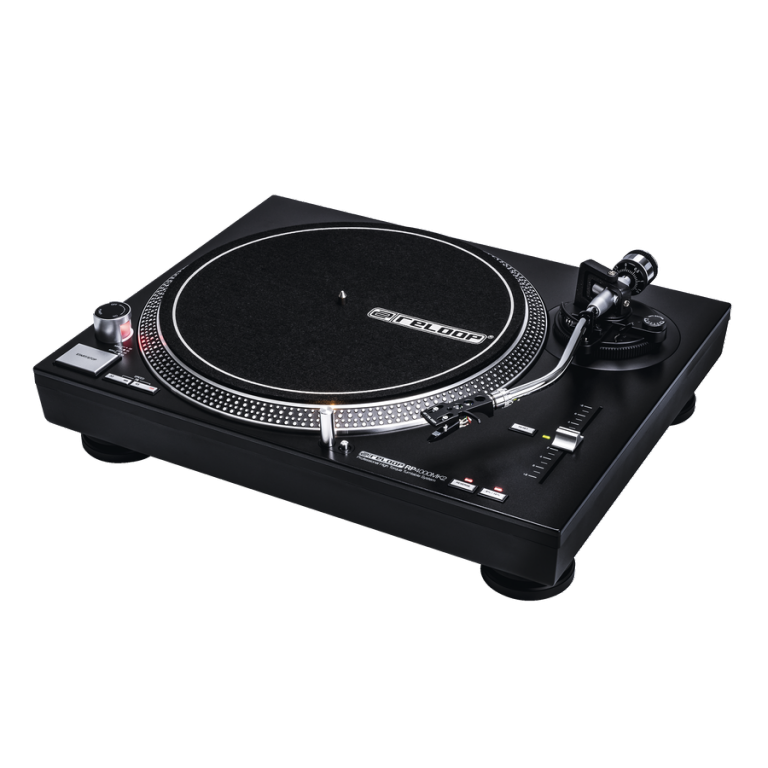

Quartz-driven DJ turntable with high-torque direct drive

The RP-4000 MK2 is a solid DJ turntable for advanced users. The new MK2 version comes with several improvements, including a newly developed top panel and reworked metallic buttons with enhanced feel as well as a variety of functions.

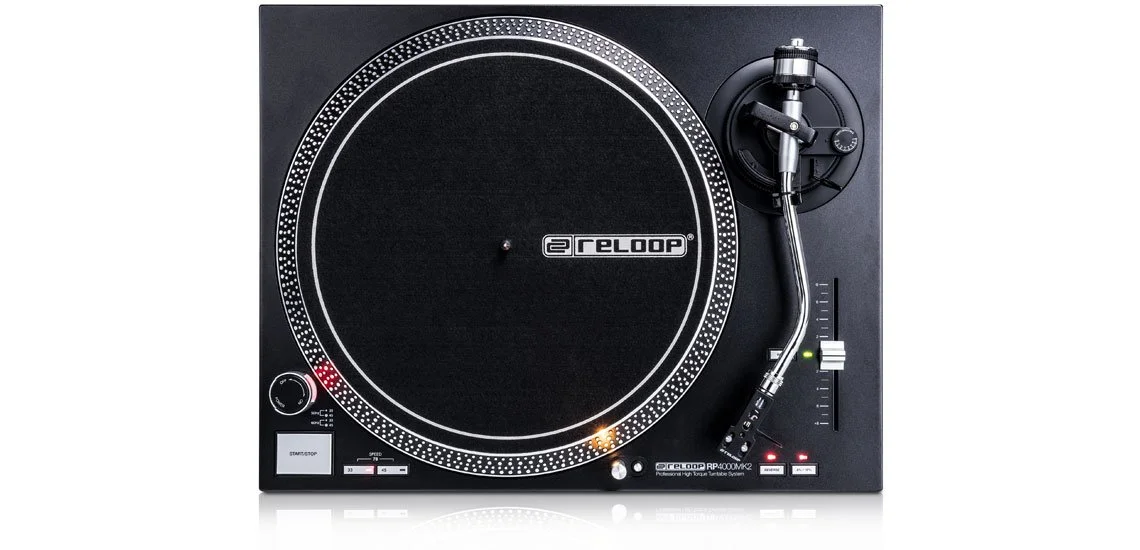

Newly developed top panel and sturdy housing design

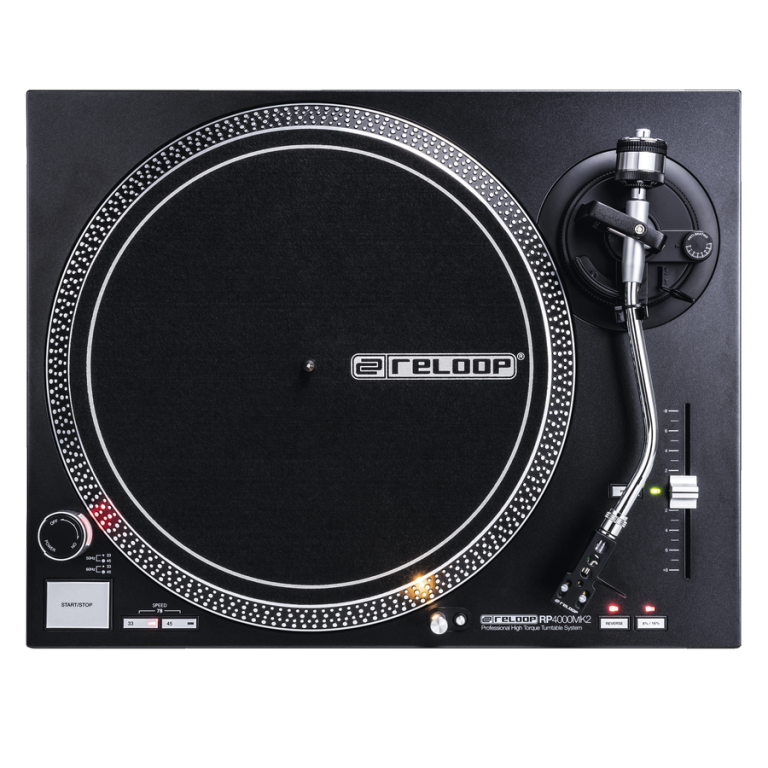

The new deep black metallic top panel construction is equipped with metallic buttons for start/stop, platter speed, pitch control, reverse function and tempo reset. The improved touch upon hit offers a clear haptic feedback. The sturdy construction with optimized damping features and shock-absorbing feet improve isolation from unwanted vibrations.

RP-4000 MK2

Quartz-driven DJ turntable with high-torque direct drive

Powerful motor with more than 1.8 kg/cm torque
Redesigned metal top panel, tactile buttons and reinforced housing construction

Specifications

Features

New in the MK2 version:
Newly developed top panel and reinforced housing construction

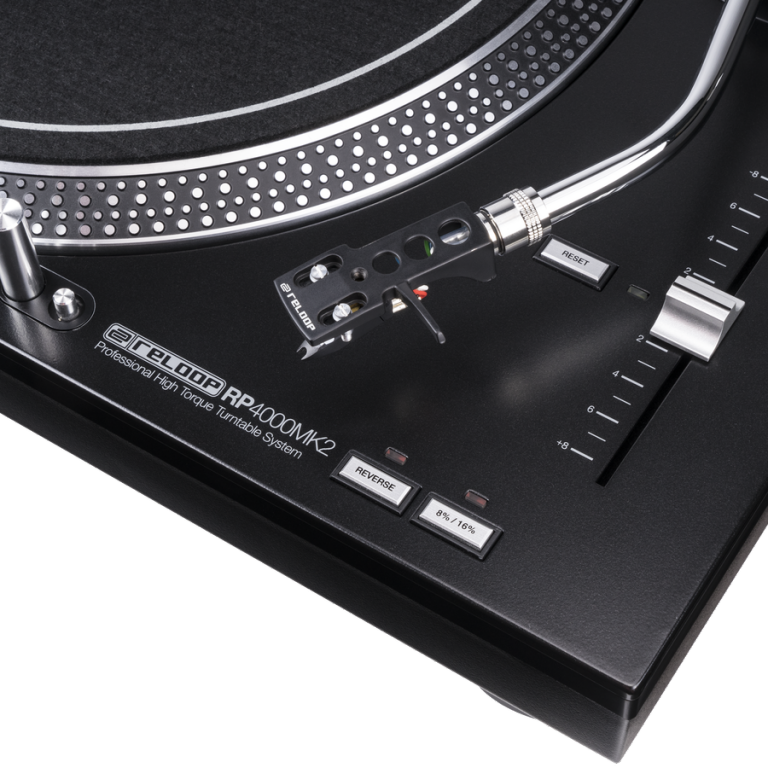

Reworked metallic buttons with improved feel & tactile response
Precision pitch with selectable ranges of +/-8 % & +/-16 %
Tempo reset (quartz lock) feature
Superior finish in deep black metallic
Quartz-driven DJ turntable with high-torque direct drive
Designed for professional use
Powerful brushless DC motor with more than 1.8 kg/cm torque

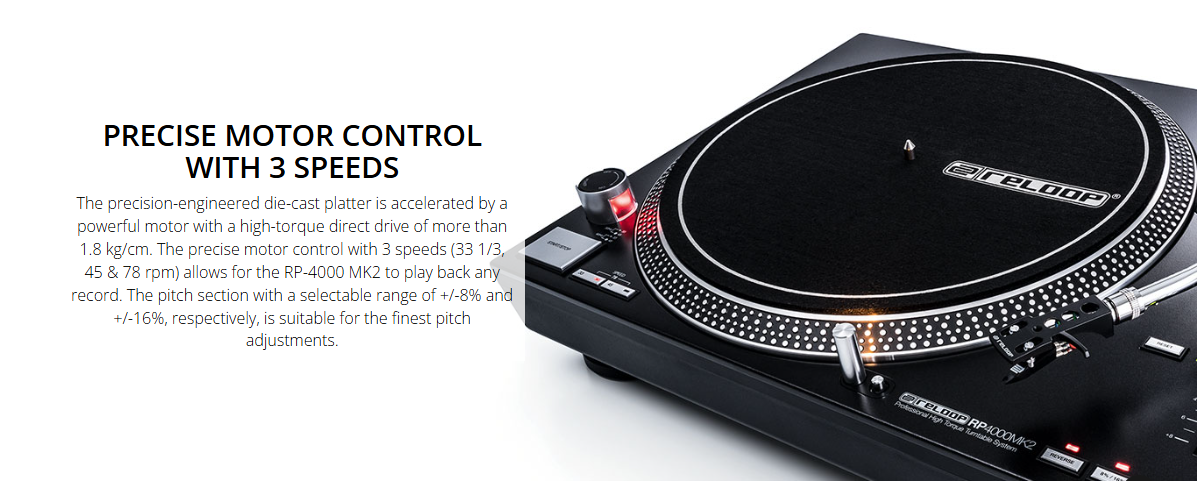

Precise motor control with 3 selectable speeds (33 1/3, 45 & 78 rpm)

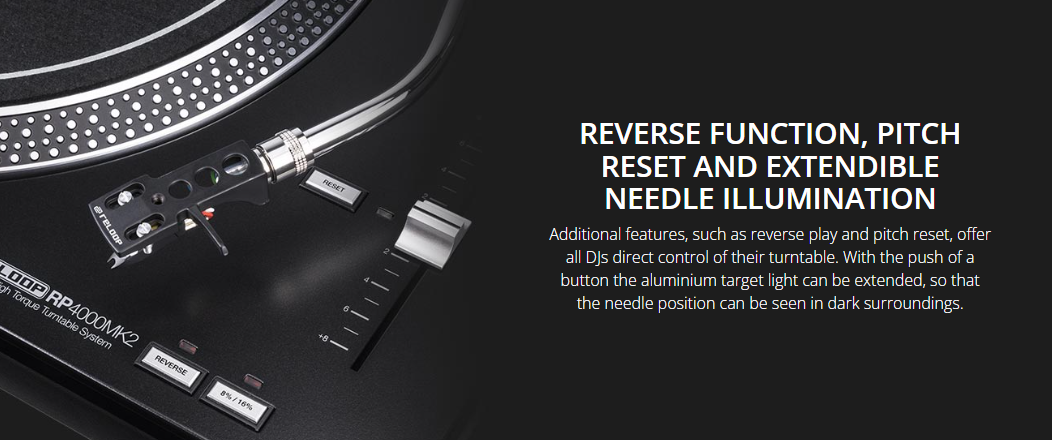

Reverse function: switch for forward/reverse playback
Precision-engineered die-cast aluminium platter with stable rotation

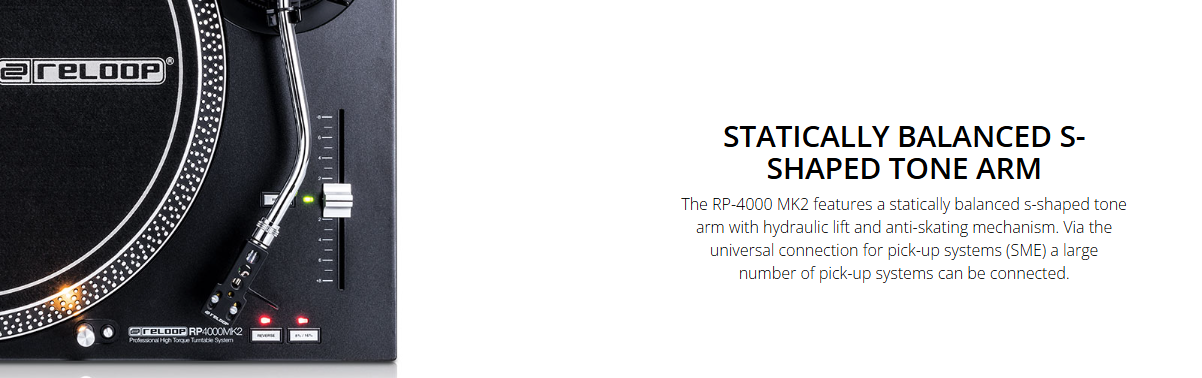

Statically balanced S-shaped tone arm with hydraulic lift and anti-skating mechanism
Universal connection for pick-up systems (SME)
Extendible needle illumination

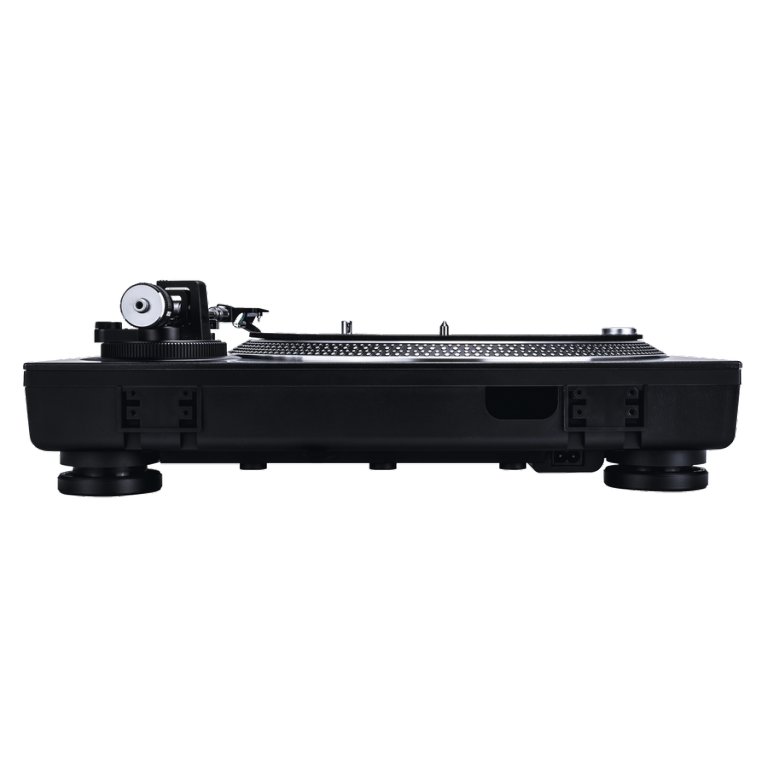

Shock-absorbing feet for vibration isolation
Sturdy, heavy construction with optimized damping features

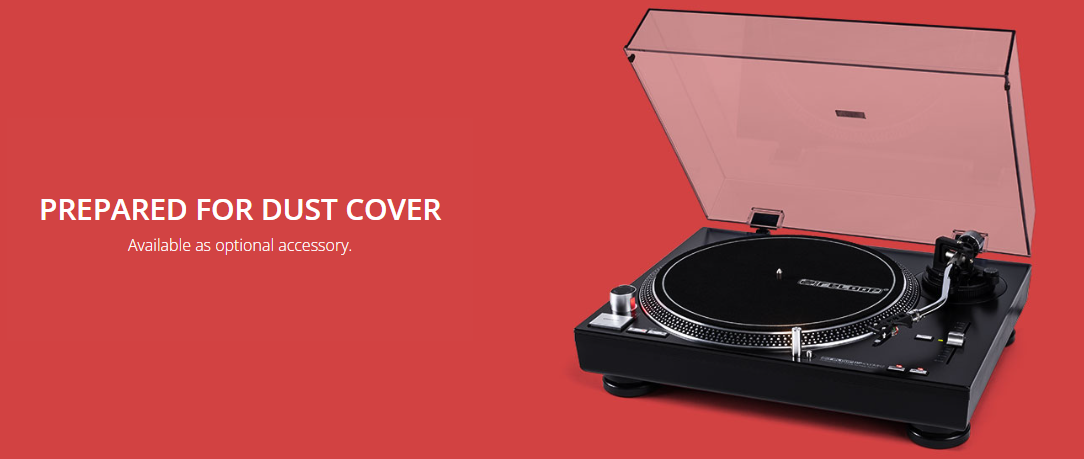

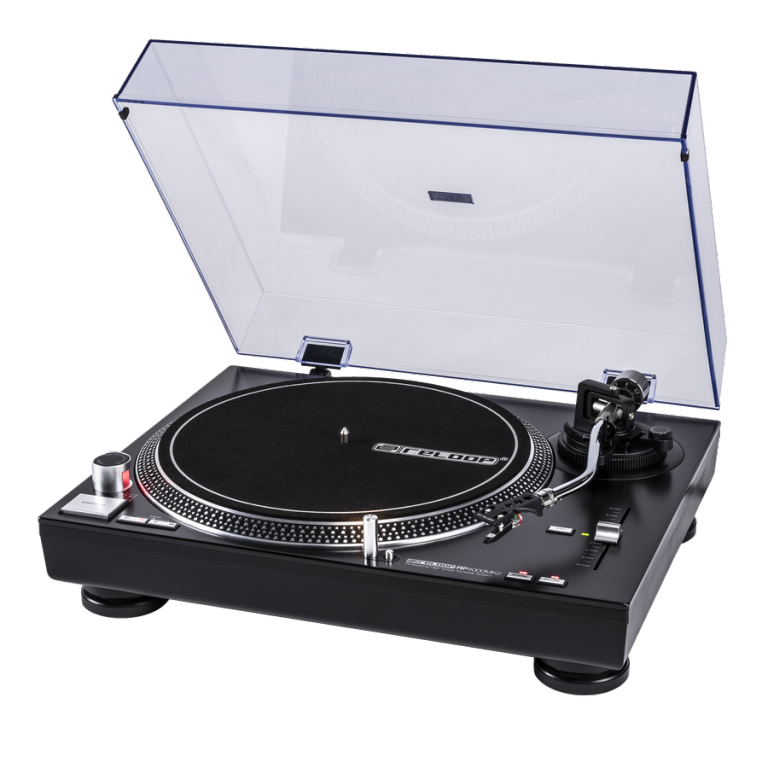

Prepared for dust cover (available as optional accessory)

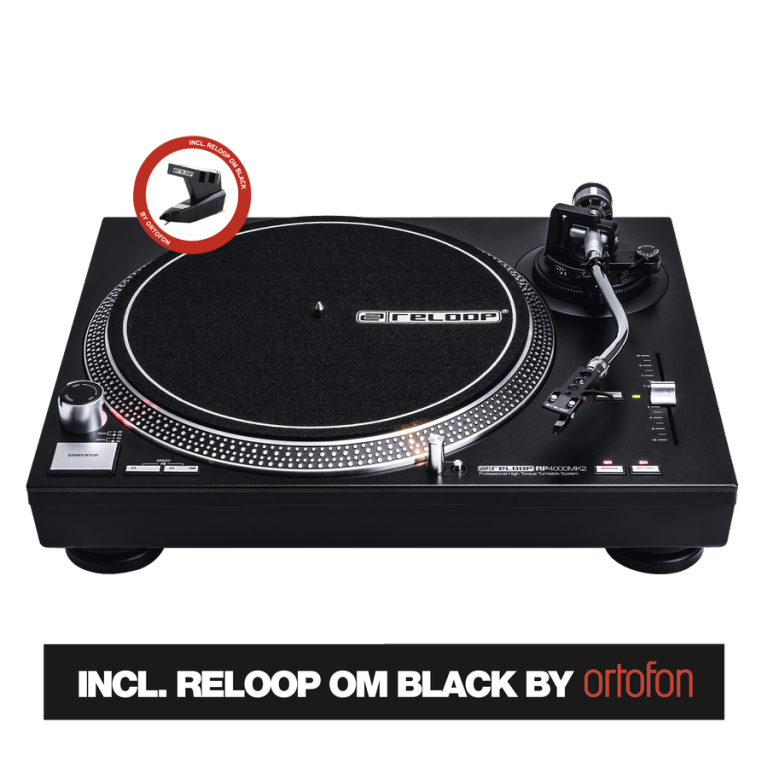

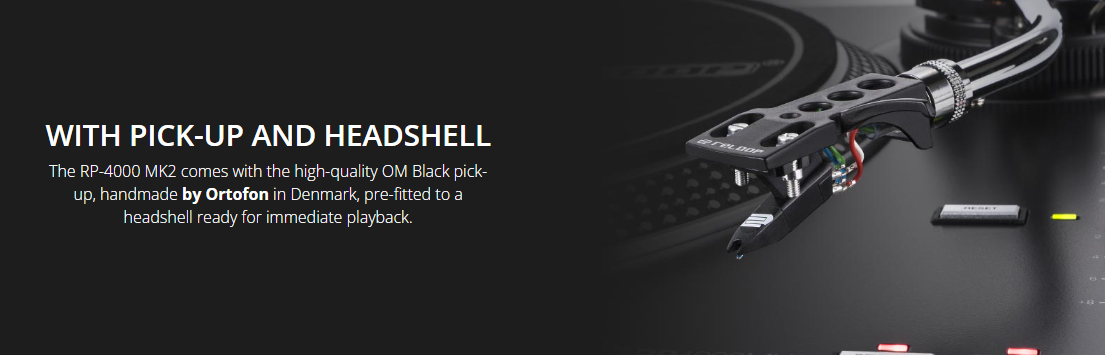

Incl. platter, Reloop OM Black cartridge (by Ortofon), headshell, slipmat, counterweight, power cord, instruction manual

Technical Data

Turntable:
- Type: direct drive turntable
- Drive: quartz-driven high-torque direct drive
- Motor: 8-pol., 3-phase, brushless DC motor
- Turntable speeds: 3 speeds, manual (33 1/3, 45, 78 rpm)
- Starting torque: > 1.8 kg/cm
- Brake time: < 1 sec.
- Start-up / rpm change: < 1 sec.
- Wow and flutter: < 0.2 % WRMS
- Signal-to-noise ratio: > 50 dB (DIN-B)
- Brake system: electronic brake
- Record weight: recommended 800g
Platter:
- Material: aluminium die-cast
- Diameter: 332 mm
Tone arm:
- Type: universal, statically balanced, s-shaped
- Effective length: 230.5 mm
- Overhang: 16 mm
- Tracking angle error: < 3°
- Applicable pick-up weight: 3.5 – 8.5 g (incl. headshell 13 – 18 g)
- Anti-skating range: 0 – 7 g
Connections:
- 1x Phono out (gold-plated), 1x GND
General:
- Power supply: AC 115/230 V, 60/50 Hz (EU/US), AC 100 V, 50/60 Hz (JP)
- Power consumption: 12 W
- Dimensions: 450(W) x 352(D) x144(H) mm
- Weight: appr. 9.8 kg
