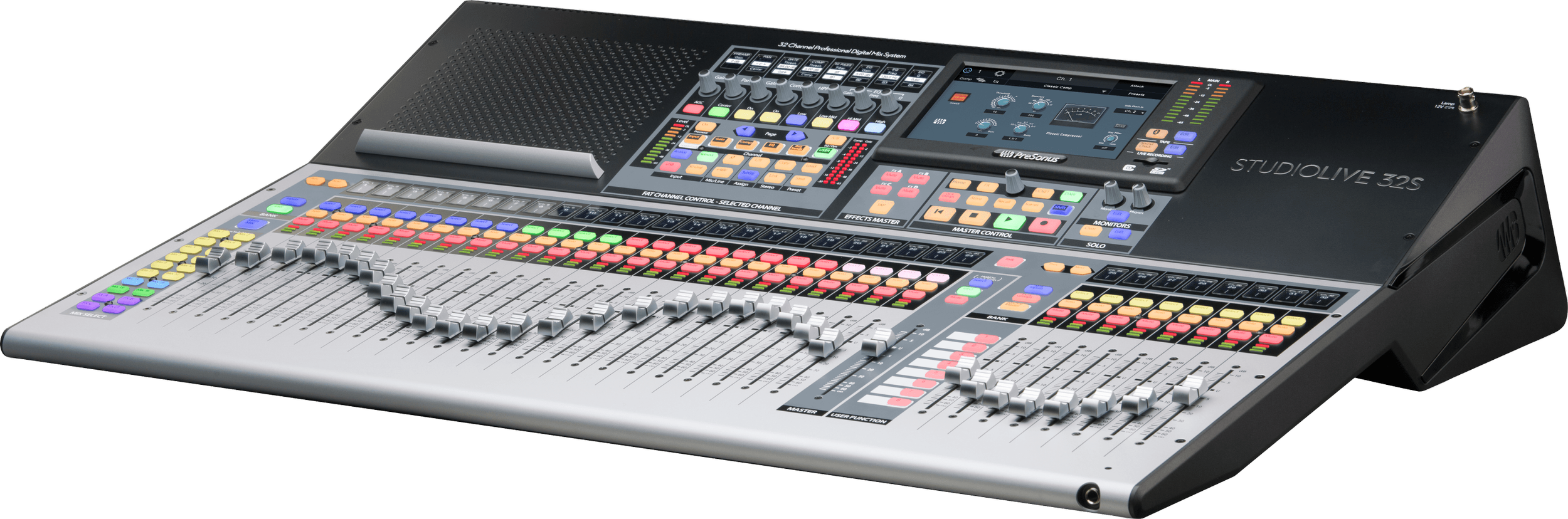

PreSonus® StudioLive® Series III 32S Digital Console Mixer

Our large-format 32-channel powerhouse digital mixer and USB audio interface with a complete suite of integrated software.

Available here:

A 32-channel powerhouse with one-to-one channel control the StudioLive 32S is a small-format digital mixer with large-format mixing power. Thanks to AVB, it's easily expandable - readily networking with EarMix 16M personal monitor mixers for customized onstage mixes and PreSonus NSB-series stage boxes for remote inputs. The StudioLive 32S's 16 FlexMixes can be individually configured to function as aux buses, subgroups, or matrix mixes allowing you to customize your mixer any way you wish. The Fat Channel processing section employs expandable plug-in options with vintage EQ and classic compression options on every input channel and output bus.

The StudioLive 32S also ships with PreSonus Capture® recording software, which can be run directly on your mixer or Windows or macOS computer. Record all 32 channels plus a stereo mix of your choosing via USB, to an SD Card, or both for the ultimate redundant live recording rig.

Features

  • Portable, and flexible digital console for installed sound, mobile applications, and recording with dual-core FLEX DSP Engine powering 286 simultaneous processors

  • Fully recallable, 38-input, 40-channel digital mixing console

  • 24 Mix buses: 16 FlexMixes (Aux-, Matrix-, or Subgroup- configurable), 4 FX Mixes, 4 Subgroups

  • 33 touch-sensitive, motorized faders

  • Built-in 64x64 AVB audio networking makes connecting other StudioLive Series III mixers, PreSonus NSB stage boxes, EarMix 16M personal monitor mixers plug-and-play

  • Built-in 128-channel (64x64) USB interface - the most of any digital mixer on the market

  • Onboard multitrack SD Card recorder with true Virtual Soundcheck

  • FLEX FX multi-effects processor with 4 slots to load legendary reverb emulations and delays with 4 dedicated effects buses

  • Complete professional solution: suite of integrated software, including 12 months of Studio One® Pro + and Capture

Highlights & Specifications

Remote Control Your Digital Mixer From Anywhere—On Any Device.

Whether you’re adjusting monitor mixes on stage, moving around the room to dial in your mix, or using your mobile device as a second screen for your StudioLive 32s digital mixer, remotely controlling your mix from anywhere just got easier. Mix wirelessly on your table using UC Surface touch-control software. Control your monitor mixes from your phone with QMix®-UC.

Superior Sound

In 1995, PreSonus patented digital control over analog circuits with our first studio product. Building on this legacy, we created a separate digital volume-control circuit ahead of our lauded analog XMAX mic preamp design, providing the convenience of digital recall without sacrificing fidelity.

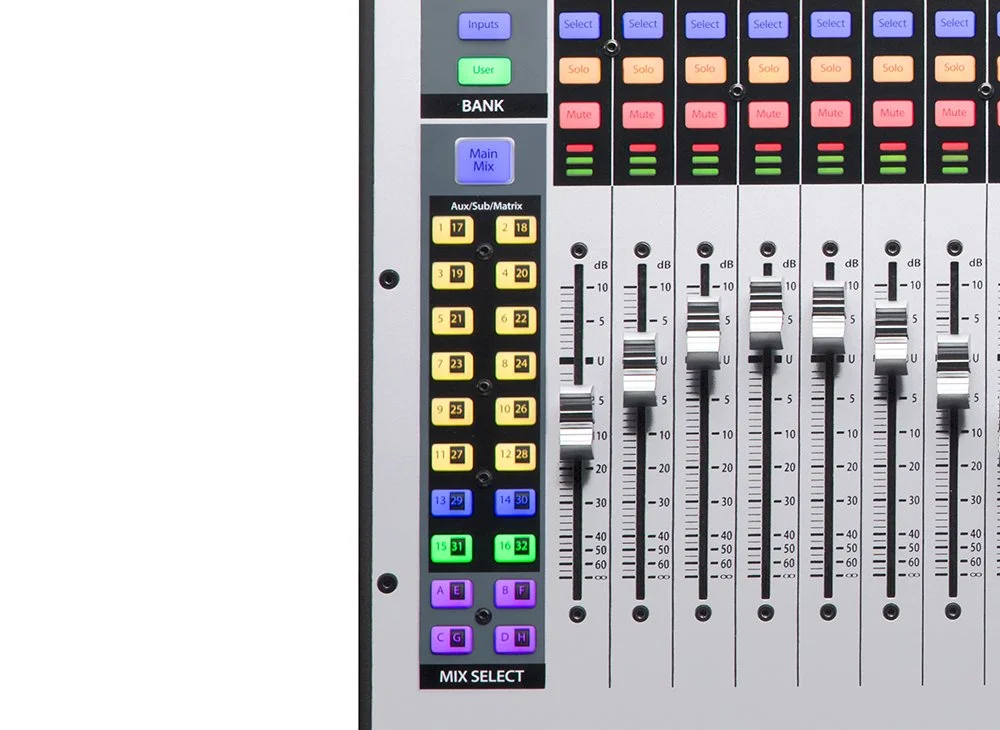

The FlexMix Difference.

Highly configurable, the StudioLive 32S provides 16 FlexMixes that can be used as aux buses, subgroups, or matrix mixes. Four dedicated effects buses and four additional subgroups provide a total of 24 mix buses plus an independent solo bus and the main mix. You also get 24 DCAs to control groups of channels easily.

A Complete Networked Solution.

StudioLive Series III networked products form an ecosystem that is easily expanded and quickly configured. Inputs and buses can be freely routed internally, out to your AVB network, and over the USB bus, allowing you to customize your StudioLive 32s to fit your needs—even when those needs change. Designed to enhance each other, these products are at the forefront of AVB networking technology.

One-Click Recording

The StudioLive 32s is tightly integrated with PreSonus® Capture® live-recording software. Capture is designed to make recording easy by instantly configuring with your mixer and allowing you to record every channel plus the main mix with a single mouse click. Even better, your Capture sessions open natively in Studio One!

Studio One Pro 7 DAW Software License Included.

Your hardware registration includes a Studio One Pro 7 perpetual license (yours to keep) and 12 months of access to all the add-ons, exclusive content, and extras in Studio One Pro+.

Specifications:

Electronics

Voltage - 100-120V

Headphone Jack - 1/4" TRS Active Stereo

Microphone Preamp

Total Harmonic Distortion - <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted

Signal To Noise Ratio - 94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)

Common Mode Rejection Ratio - 65 dB (1 kHz at Unity Gain)

Gain Control Range - 0 dB to +60 dB (±1 dB)

Microphone Preamp Maximum Input Level - =+12 dBu (Unity Gain)

Phantom Power - 48 VDC, Switchable Per Channel (±2 VDC)

Frequency Response - 20-20 kHz (±0.5 dBu at Unity Gain)

Microphone Preamp Input Impedance - 1 kΩ

Headphone Outputs

Headphone Outputs Maximum Output - 100 mW/ch. @ 60Ω load

Frequency Response - 20 Hz to 20 kHz, +/-0.5 dB

Total Harmonic Distortion - 0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted

Miscellaneous

Connection Type - IEC

Line Inputs

Line Inputs Maximum Level - =+18 dBu

Line Inputs Frequency Response - 20-20 kHz (±0.5 dBu at Unity Gain)

Line Inputs Total Harmonic Distortion - <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted

Line Inputs Impedance - 10 kΩ

Digital Audio

Digital Audio Dynamic Range - ADC Dynamic Range: 115 dB (A-Weighted, 48 kHz), DAC Dynamic Range: 115 dB (A-Weighted, 48 kHz)

Digital Audio Bit Depth - 24

Supported Sample Rates - 48 kHz, 44.1 kHz
